DR3D Models 4mm scale 3D wagon prints
by Duncan Redford
These are not complete kits, they are aids to simple scratch building. The components needed to complete each print are listed in the print's instructions. The parts included in each kit are listed below. Pricelist (pdf), which lists future kits in preparation. To order, e-mail.
In most of the illustrations, buffers, brake gear and brake levers are ABS and W-irons are MJT. Further illustrations will be added in due course. Developments can be followed on RMweb.
| Reference |
Description |
Parts key
(see below)
|
Illustration (click for larger image) |
| 4GWR-001 |
Bar-sided 4-wheel fish wagon to diagram S7 (1892–1926) |
1 |
(to be added) |

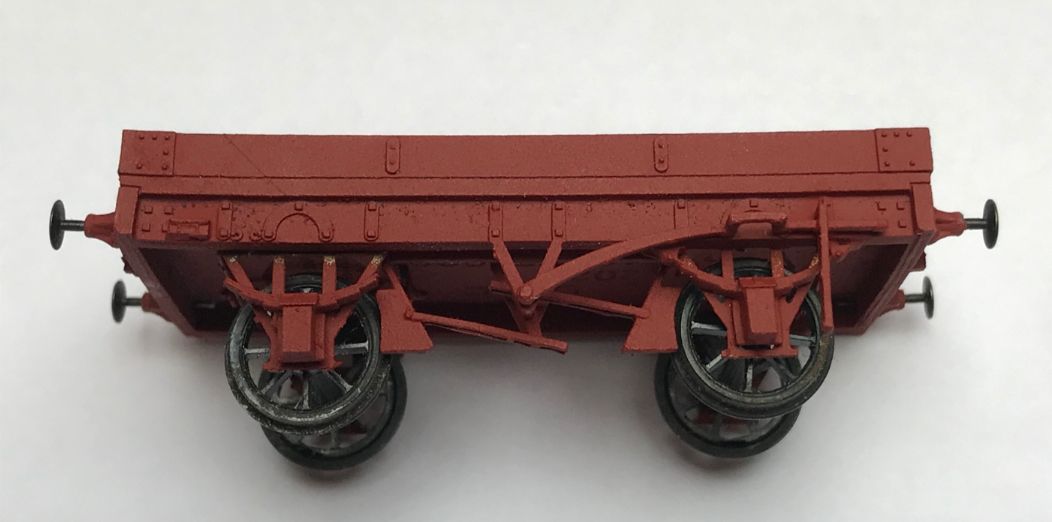

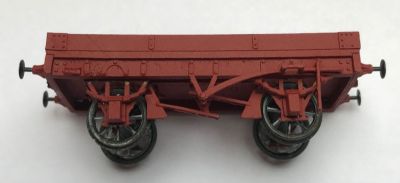

| 4GWR-002 |
1-plank wagon 15'6" O/H (15' in clear) no diagram (1866–c1914) |
2 |
 |

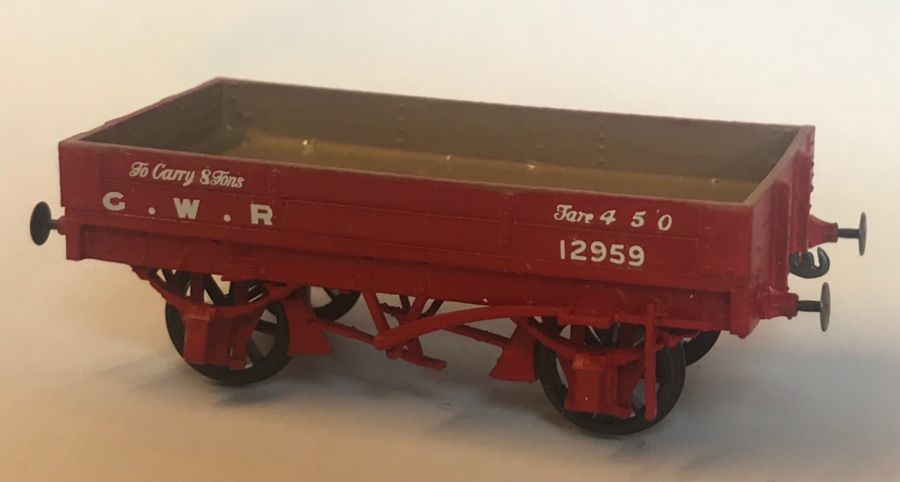

| 4GWR-003 |
lots 20 & 21; 2-plank wagon 16' O/H (15'6" in clear) (no side door, low sides: 2 x 9" planks) (1870–cWW1) |
2 |
 |

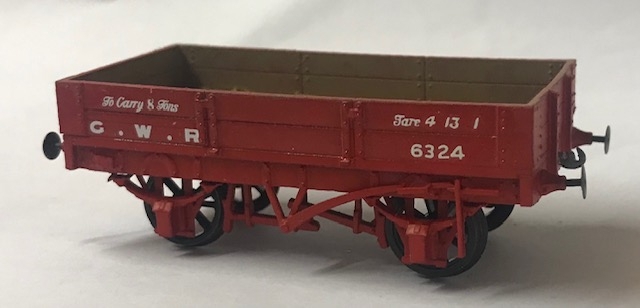

| 4GWR-004 |
2-plank wagon 16' O/H (15'6" in clear) (with side doors, high sides: 2 x 11" planks) (1872–cWW1) |
2 |
 |

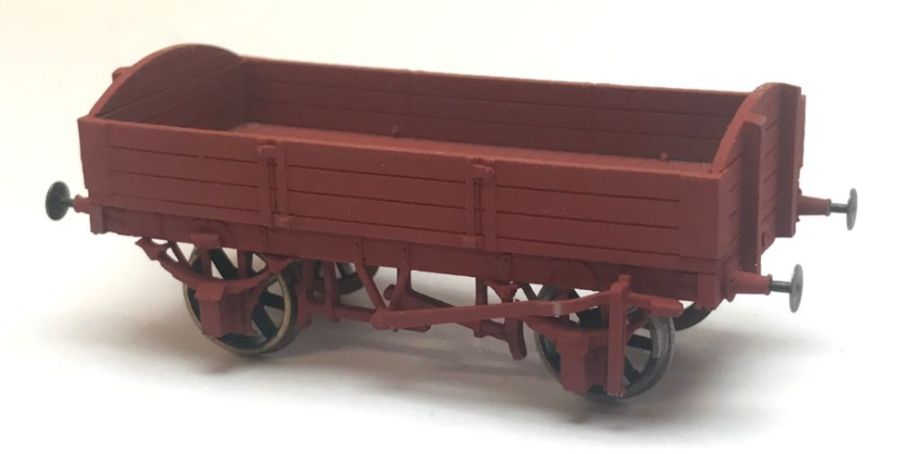

| 4GWR-005 |
3-plank wagon (round ends, wooden u/f) (1879–cWW1) |
3 |
 |

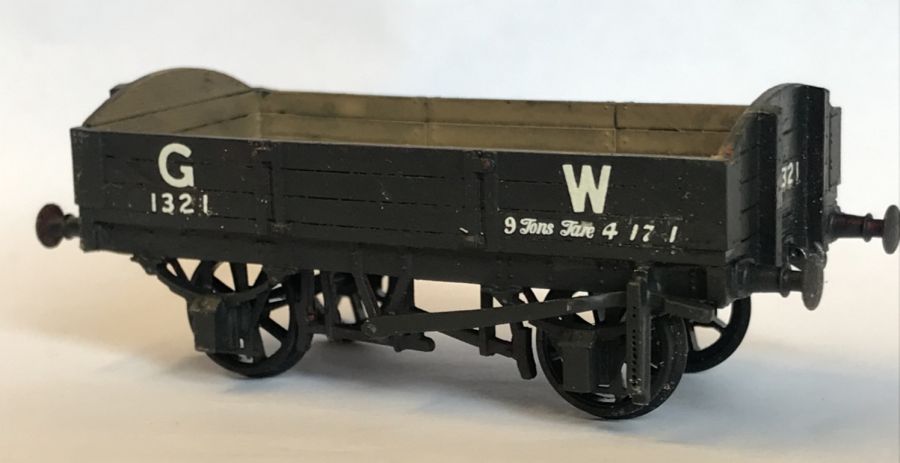

| 4GWR-006 |
3-plank wagon (round ends, fitched u/f) (1880–cWW1) |
3 |
 |

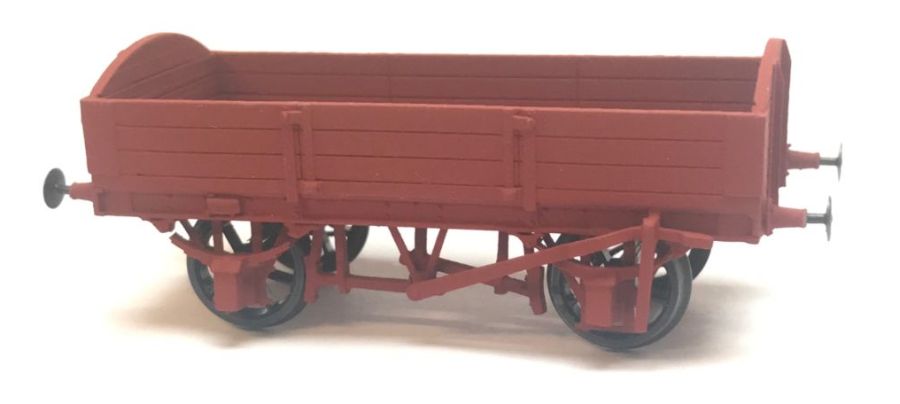

| 4GWR-007 |
3-plank wagon (round ends, iron u/f) (1880–1920s) |
3 |
 |

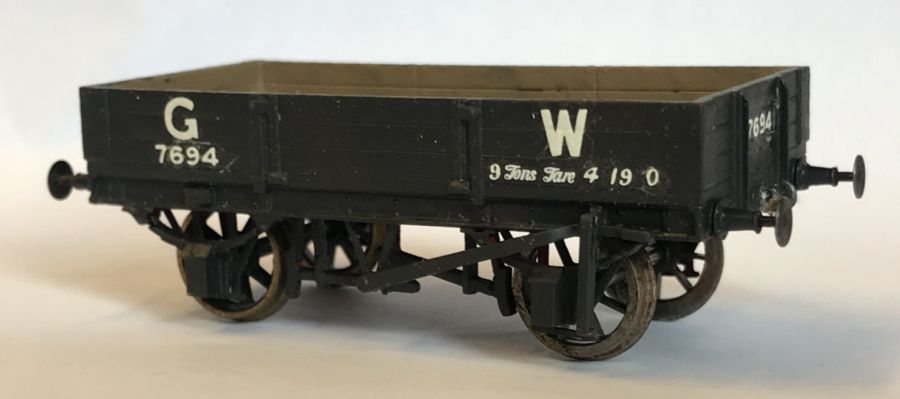

| 4GWR-008 |
3-plank wagon (square end, iron u/f) (1884–1920s) |
3 |
 |

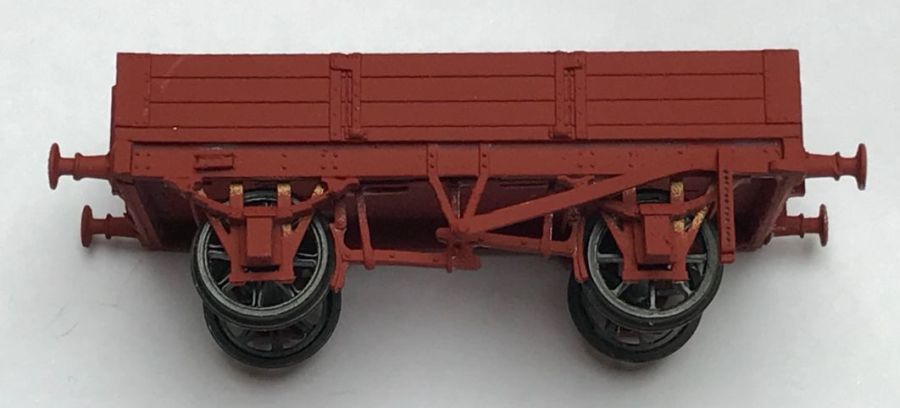

| 4GWR-009 |
3-plank wagon (square end, fitched u/f) (1880–cWW1. The dates when round ends were removed is unclear but believed to be after 1900) |
3 |
 |

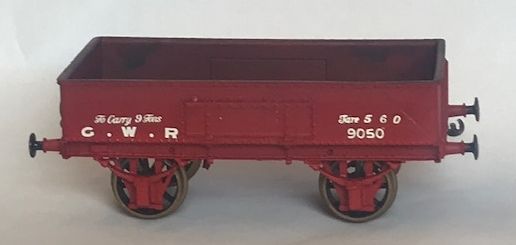

| 4GWR-010 |
Loco coal wagon to diagram N6 (no extension plates) (1880–1930s to 1950 – the dates when the side extensions were added are unknown) |
3 |
 |
| 4GWR-011 |
Loco coal wagon to diagram N6 (with extension plates) (1880–1930s to 1950) |
3 |
(to be added) |

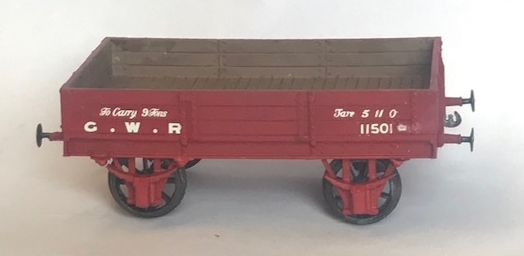

| 4GWR-012 |
BG convertible 3-plank wagon osL345 (1885–1892) |
4 |
 |

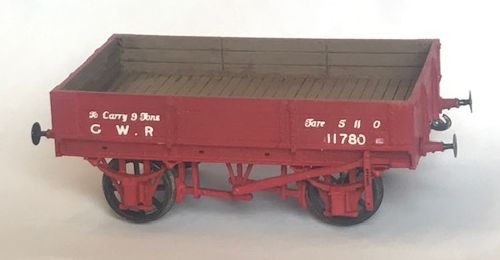

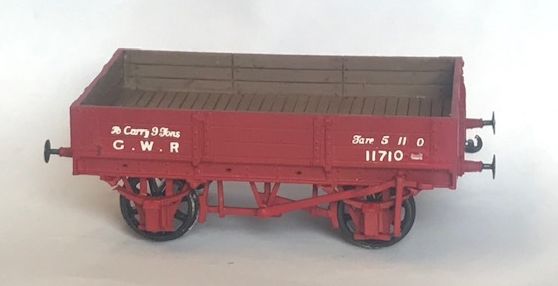

| 4GWR-013 |
BG convertible 3-plank wagon osL369 (1886–1892) |
4 |
 |

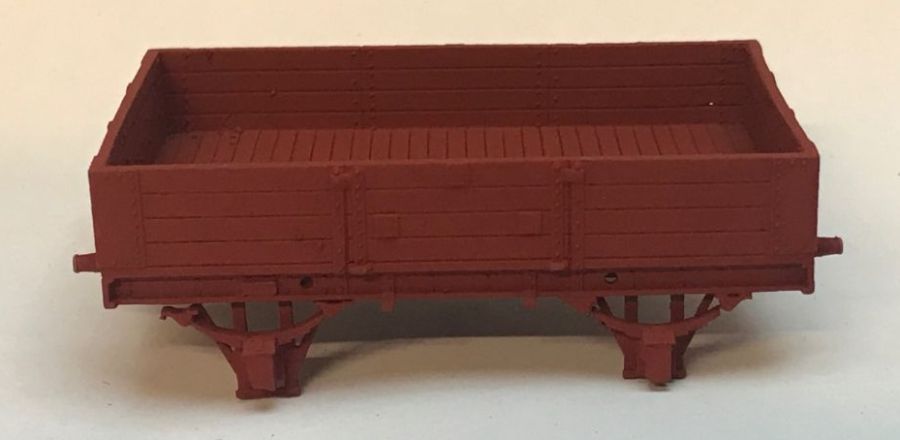

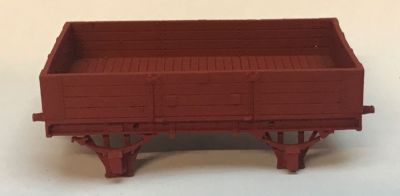

| 4GWR-014a |
BG convertible 4-plank wagon osL497 (with door springs both sides) (1889–1892) |
3 |
 |

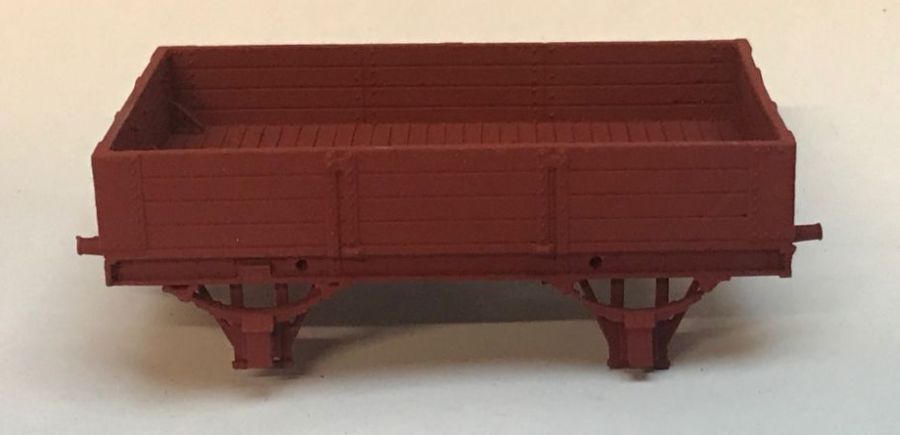

| 4GWR-014b |
BG convertible 4-plank wagon osL497 (with door springs one side only) (1889–1892) |
3 |
 |
Parts included:
| 1 |
Body x 1, queen posts x 2, vacuum cylinder x 1, buffer guides/housing x 4, and clasp brake gear, clasp brakes
|
| 2 |
Body x 1, wagon label box x 2, early ribbed buffer housing (no heads) x 4, grease axle box & spring x 4, wooden 2 shoe brake gear and curved lever
|
| 3 |
Body x 1, wagon label box x 2, grease axle box & spring x 4, round based taper buffer guides/buffer housing (no heads) x 4
|
| 4 |
Body x 1, grease axle box & spring x 4, round based taper buffer guides/buffer housing (no heads) x 4 |
|
