A Beginner's Guide to GWR 4-coupled tanks

by Jim Champ

(pictures from the webmaster's collection unless otherwise credited)


1466 at Didcot, 30 July 2017, photo by Shaun Curtis

1466 slumbers in summer Sunday sunlight at Didcot running shed, 2017. Picture courtesy of and copyright Shaun Curtis. The loco is currently undergoing a complete renovation.



The GWR had 0-4-2 Tanks amongst its very earliest narrow gauge locomotives, and they existed in great variety and experienced many rebuilds and changes. An article of this nature cannot hope to capture all the detail. The intention of this paper is to provide an introduction to the main types that survived in numbers into the 20th century. It does not claim to be in anyway comprehensive: for that you need the specialist books on the subject: notably the RCTS series 1.

Perhaps more than any other classes the 4-coupled tanks show the alternate Swindon and Wolverhampton lines of development and maintenance of the 19th century. There were two classes built in large numbers: the 0-4-2 517 class and the slightly larger 2-4-0 Metro Class. The 517s were designed and built at Wolverhampton, and the Metros at Swindon, but both factories would repair and rebuild both classes.

It's striking just how independent the Wolverhampton factory was from the nominal head office at Swindon in the 19th century, and to a lesser extent up to the 1930s. It's quite clear that they maintained separate design teams and that they didn't even maintain common drawings for the same class, so Swindon rebuilds of 517s could be readily distinguished from Wolverhampton ones. When William Dean took over at Swindon he had been promoted over the head of his old boss, George Armstrong at Wolverhampton, and until Armstrong retired in 1897 he seems to have been left in complete charge at his own works without supervision by Dean.

The classes addressed on this page are:

  • Armstrong designs:
    • Wolverhampton 517 Class
    • Swindon 3521 Class
    • Wolverhampton 3571 Class
    • Swindon Metro Class
  • Dean/Churchward:
    • Swindon 3501 & 3511 Classes (Stella tanks)
    • Swindon 3600 Class
    • Swindon 2221 Class
    • Swindon 4600
  • Collett:
    • 1101 Class
    • 4800/1400 Class
    • 5800 Class

Maintenance, rebuilding and its implications

When a major overhaul was due the Great Western would dismantle a locomotive virtually down to its component parts. The boiler in particular would take longer to repair than the rest of the locomotive, so by the beginning of the 20th century an alternative boiler would be fitted as soon as the rest of the locomotive was ready in order to bring the locomotive back into service.

Over the Armstrong/Dean/Churchward era, all classes, but particularly these small tanks and to a lesser extent the 0-6-0 classes had steady design improvement going on. It also seems clear that the policy was to update older stock as and when they came into the shops for repairs, rather than institute a programme to rebuild a whole class. The degree of rebuild that a locomotive might receive in the works seems to have varied greatly. One may speculate that it depended on how busy the works in question was when a locomotive came in for repair and how desperately it was needed back in traffic.

Some equipment, notably autofitting gear and condensing apparatus, was only required on some members of these classes and could be readily removed or added. It is evident that there was no particular pattern about which locomotives it was fitted to: locomotives were just equipped as convenient and might come into the works with the equipment and go out without. This policy appears to have changed with Collett as CME and Cook as head of Swindon Works. In their era specialist subclasses were maintained: 4800/5800 and 6400/7400 with and without autofitting are examples, as are the sub-class of condensing-equipped 8750 large panniers, the steam brake only 6700 and 6750 sub-classes and the renumbering of oil burning locos in 1948.


Class Name Barrel length Barrel diameter Firebox length
C Std 3 10' 3" 5' 0" 7' 0"
P 2301 10' 3" 4' 5" 5' 4"
R 850 10' 0" 3' 10" 4' 0"
S 517 10' 0" 3' 10" 4' 6"
SS 4800 10' 0" 3' 10" 4' 6"
T Metro 10' 6" 4' 3" 5' 1"
U 2021 10' 0" 3' 10" 5' 0"

The RCTS volume on GWR 4-coupled tanks lists nearly 70 variations in boilers used on the classes mentioned in this piece. However, for our purposes we can list 7 basic classes of boiler used on them.

Boilers seem to have been the subject of continuous development, especially during the Churchward era.

Early locomotives

Some of these early 4-coupled tanks, predating any kind of standardisation, had very long lives, even lasting into the Collett era.

Two basic 0-4-2 saddle tanks, 91 & 92, were built by Beyer Peacock in 1857 and in 1877/8 one good one, 92, was made from the two. It was rebuilt as an 0-4-0ST in 1878, and in 1893 received a very major rebuild at Wolverhampton. Astonishingly it then survived until 1942, albeit only as a stationary engine in its latter years. A similar loco, 342, was built by Beyer Peacock in 1856, and bought by the GWR in 1864. This had a similar life to 92, converted to 0-4-0ST in 1881, rebuilt in 1897, and survived until 1931.

Wolverhampton built twelve 2-4-0Ts from 1864–1866. 1002, 1A (soon 17) and 2A (soon 18) in 1864, then 1003, 11, 227 and 344–349 in 1865/6. Much detail has been lost over the years, but they varied in both boiler size and wheelbase. As built they were cabless and had well tanks and a notably tall chimney on a low slung boiler, and later on acquired open cabs and saddle tanks. All went in the 1880s and 1890s.

Swindon built two outside cylinder 2-4-0 Well tanks in 1864, 320 & 321. A Gooch design, they were the first standard gauge locomotives to be fitted with condensing gear on any line. They had steeply inclined outside cylinders and were very similar to the broad gauge "Metropolitan" class.

Wolverhampton built an 0-4-0ST, No 45 in 1880. Noteworthy only for being the only conventional 0-4-0T built at any GWR works it was scrapped in 1938 yet ran only 430,000 miles in those 58 years.

Several other small 4-coupled tanks were absorbed in the mid-19th century and were gone by the end of it.


GWR 96, ex-Birkenhead Railway

96 originated as a Sharp Stewart & Co loco for the Chester & Birkenhead Railway in 1856, and was acquired by the GWR in 1860. The rear buffers were later replaced by solid wooden ones. It was withdrawn in November 1935, having spent its whole life in the Northern Division. The wooden buffers indicate the loco spent its time as a works shunter, possibly at Stafford Road.


GWR 92 and 342

Another late-surviving Wolverhampton pair, 92 and 342. These were originally built for the GWR by Beyer Peacock in 1856/7. 92 got a rebuild in 1893 to the appearance shown here, and survived as a stationary boiler until 1942. 342 was rebuilt in 1897 to the form shown here.


13 was an experimental Dean loco, first appearing in 1886 as a well tank 2-4-2T, and extensively rebuilt in 4-4-0ST form in 1897, as depicted here. It worked on various branch lines (St Ives, Watlington, Looe, Highworth, Brixham), but was eventually withdrawn from Swindon in 1926. GWR 4-4-0ST 13


Wolverhampton 517 Class

144 of the 0-4-2 517 class were built between 1868 and 1885. As might be expected with the GWR at that time, the last batches were significantly different from the first, indeed perhaps more so than most classes. As built the first ones were quite stylish but very Victorian looking saddle tanks, with small tanks that only covered the boiler barrel, so neither the firebox nor the smokebox. They had no enclosed cab or even a cab roof, only a "spectacle sheet" to give the crew a little shelter when running chimney first. They had a short (7' 4" + 6' 3") wheelbase, 5' 0" drivers, 3' 6" trailing wheels, 15" diameter cylinders and R class 140lb psi boilers. Drawing: 517 Class as built

Partially conjectural drawing of one of the first lot of the 517 class as built


517 in original condition GWR 517 in original condition


Successive batches of 517s introduced in turn:

1868–1870 (locos 517–576):
  •   7' 4" + 6' 4" wheelbase (still regarded as short for the purposes of this treatment)
  •   7' 4" + 7' 4" wheelbase (still regarded as short for the purposes of this treatment)
  •   Side tanks

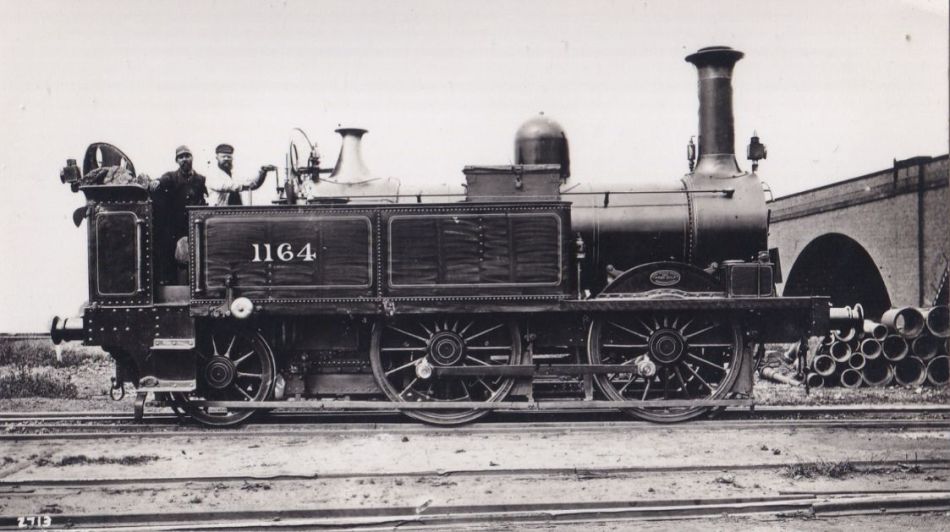

1873–1878 (locos 826–849, 1154–1165, 202–5, 215–222, 1421–1432):
  •   Medium length wheelbase (7' 4" + 7' 8")
  •   Spectacle plates on the back of the bunker
  •   Open cabs with roof
1883–1885 (locos 1465–1488):
  •   larger bunkers
  •   16" cylinders
  •   Long wheelbase (7' 4" + 8' 2")
  •   5' 1" driving wheels and 3' 7" trailing wheels (thicker tyres)
It can be gathered that there was little superficial resemblance between 1868 and 1885 batches.
GWR 517 class 215 at Weymouth

215 at Weymouth


Rebuilding, updating and withdrawal: 517 Class

The 517 Class history is of almost unrivalled complexity – perhaps only the Metros approach them. Few 517s looked quite alike, and just about all of them changed radically in appearance over their lives, sometimes several times.

Whole books could and probably have been written on the class history, and I don't propose to attempt another here. There are certain themes visible.

1876–1886. All the earlier short wheel base locomotives were converted to medium wheel base (MWB), still with inside bearings for the trailing axle. At the same time they were normally converted to side tanks.

1880–1883. Locomotives with 15" cylinders were given 16" diameter cylinders.

1870s/1880s. Open cabs were fitted to those without cabs, sometimes with and sometimes without spectacle plates on the bunker.

1883–1886. Some medium-wheelbase locomotives were converted to long wheelbase with outside trailing wheel bearings, with variations in detail design.

1890 onward. S Class boilers were introduced, and became the normal boiler for the class. Few R class boilers were fitted after 1900.

1894–1902. U Class boilers were fitted on 11 locomotives, which kept them until withdrawal, making these almost equivalent to the 3571 class.

1891–5. A few medium-wheelbase locomotives were given longer frames, a bigger bunker and the S Class boiler.

1894–1915. Many medium-wheelbase (including conversions from short-wheelbase) locomotives were converted to long-wheelbase. Only 50 were never converted.

1896 on. Most received 16 ½" diameter cylinders. From about this date they started to be fitted with even thicker tyres on the wheels, bringing them up to 5' 2" and 3' 8".

1902–1923. A good number were given narrow closed cabs.

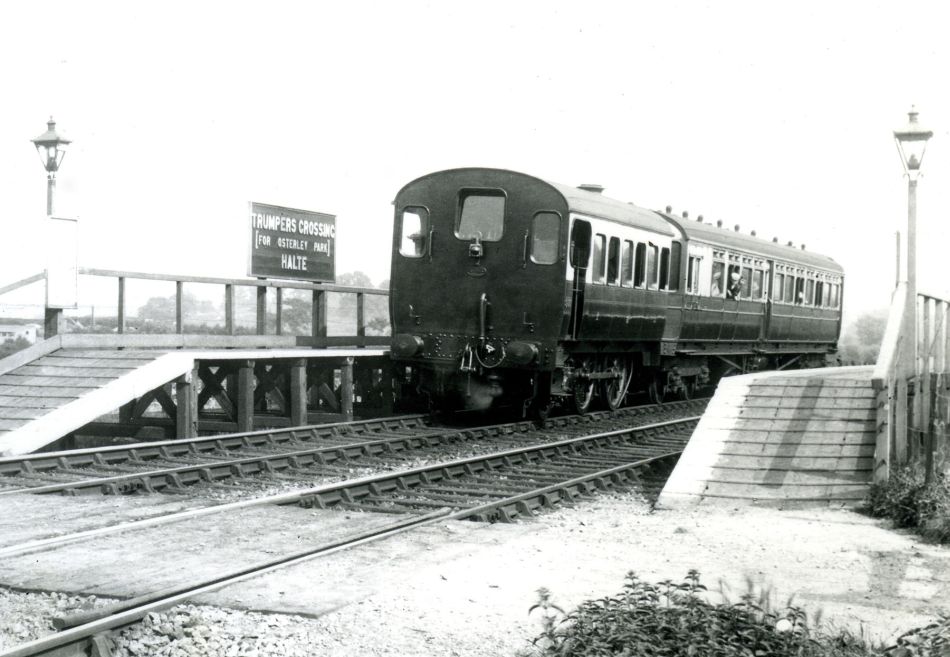

1904 on. Autofitting. Many of the class were autofitted. The locomotives with U class boilers don't seem to have been autofitted. I wouldn't guarantee this though.

1911 on. S and U class boilers with belpaire fireboxes started to be fitted.

1924 on. Further conversions to enclosed cabs were given a Collett style cab and bunker, and wider tanks. By now these locomotives were starting to look very similar to their eventual successors, the 4800/5800 class.
Drawing: 517 Diagram E

517 Class diagram E. This was termed a "Wolverhampton" rebuild, as first fitted with a Belpaire firebox

Drawing: 517 Diagram L

517 Class diagram L. This was termed a "Swindon" rebuild, and this is the final form, outwardly very similar to the 4800s.

Bunkers were in a state of constant flux. They tended to get larger and Swindon, Wolverhampton and even Newton Abbot had their own designs. I don't propose to go into much detail: they were all different, and if you are proposing to model a 517 you need to pick your photo and see what it had at the date you are working to!

The position of the tank filler varied, and was moved on many locos, but the later standard was at the front of the tank. Toolboxes were placed at the front, at the middle or at the rear of the tank.

Some locos had topfeed boilers.

At the beginning of their lives the 517s were much used on suburban traffic, especially, as might be expected, in the northern areas of the GWR. Once autofitting came in the usage changed considerably, and they scattered all over the system. The autofitted locos were kept smart, and used mainly for the passenger work. Indeed at the beginning of the 20th century, when GWR carriages had a lake finish, not brown and cream, quite a number of 517s were painted the same colour. Two 517s were even encased in dummy bodywork to make them better match the rest of the train.

The non-autofitted locomotives were used for whatever light work was required, which could, to the confusion of chroniclers, include hauling autocoaches in passenger trains...

A little sideline on the Victorian psyche is that in 1896, when a Royal train was required to traverse the Woodstock branch, 1473 was given the name "Fair Rosamund". "Fair" Rosamund Clifford was a mistress of Henry II who was reputed to have lived at Woodstock. The locomotive kept the name and worked on the Woodstock branch for many years.

One was scrapped as early as 1904. A few went in the 1910s, but the majority went from the late twenties to the late thirties, with just a handful surviving WWII and none lasting to British Rail.


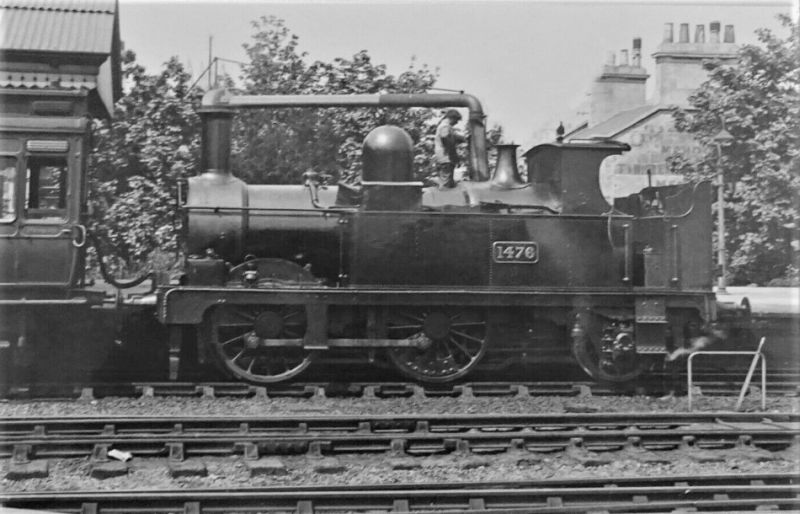

GWR 517 class 1157 at Box station, c 1907

1157, with original tanks, at Box on an autotrain, c 1907. The loco still has old-style lamp spigots.


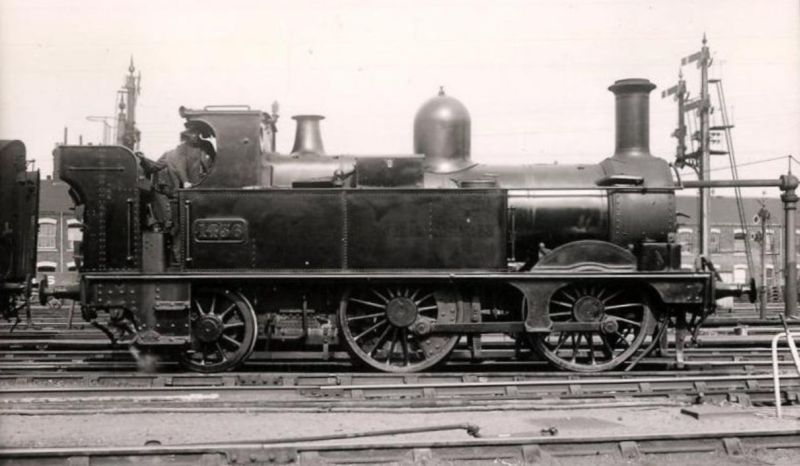

GWR 1428 at Wolverhampton

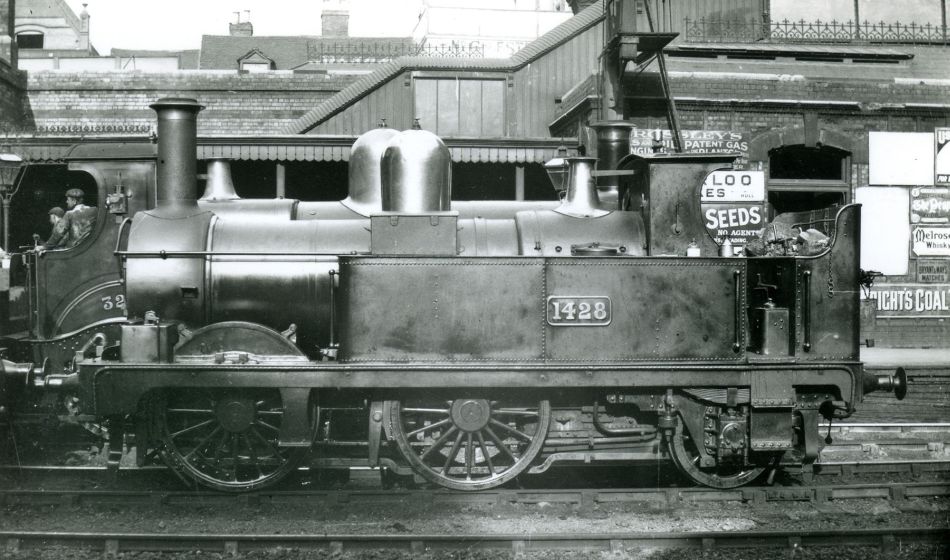

1428 at Wolverhampton, c 1905. No lining is discernible. A Barnum is lurking behind.


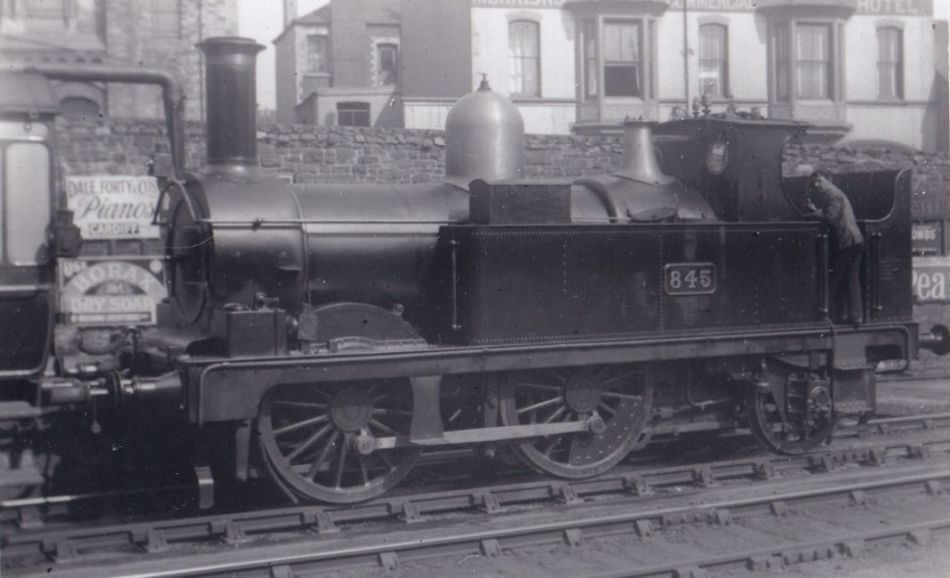

GWR 828 at Swindon

A very clean 828 at Swindon, fitted with larger diameter buffer heads, 6 July 1921

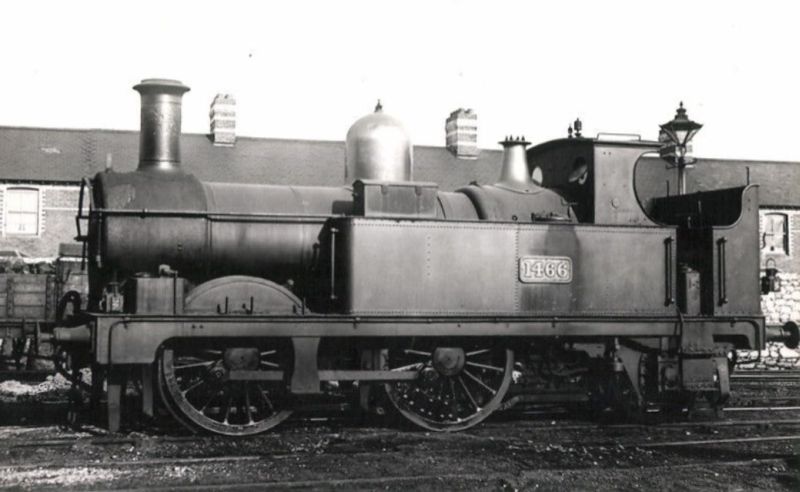

1466, with an extended smokebox and an R4 boiler, at Newton Abbot, probably c 1918–20. GWR 517 class number 1466


522, a short-wheelbase loco, shallow valance, round-top firebox, rebuilt with wide tanks and a Collett bunker.

Some 517s never received Belpaire fireboxes.
GWR 517 class 522


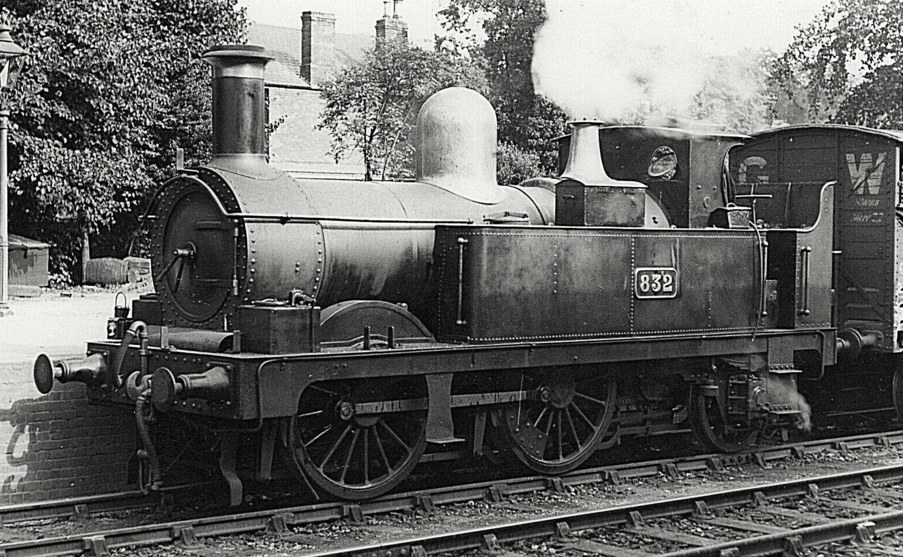

GWR 517 class 833 at Reading, 13 March 1926

833 at Reading, 13 March 1926


GWR 835 at Faringdon, 21 August 1926

835, with a Belpaire firebox, original bunker, shallow valance, and tall thin chimney. At Faringdon, 21 August 1926.


834, with its original bunker, at Oswestry, 26 August 1926 GWR 834 at Oswestry, 26 August 1926


GWR 1475

1475, its toolbox at the front of the tank, with a non-standard (Armstrong) smokebox door, a non-standard short-radius roof and a wider than normal front bufferbeam. Chester shed.


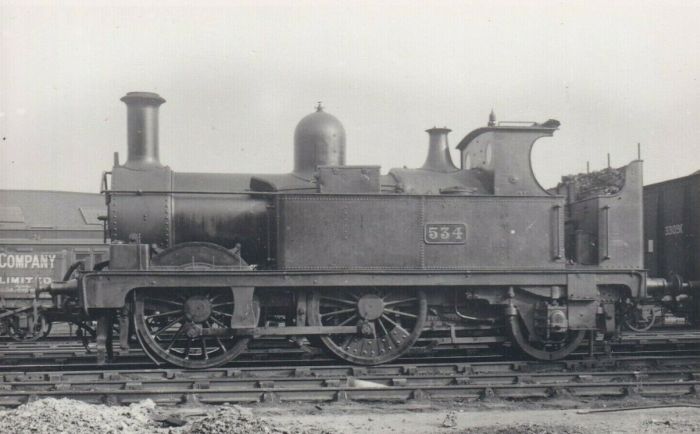

GWR 535

535, with a deep valence and long wheelbase, probably early-1920s


GWR 517 class 1482 with autotrailer

1482, autofitted, and with large diameter buffer heads. Oswestry, 1932


GWR 517 class 217 at Swindon, with topfeed

217 at Swindon, with a top-feed boiler and a roundtop firebox, and whistles mounted on the front of the cab. Wide tanks and Collett bunker.


GWR 517 class 842 at Swindon

842 at Swindon, with wide tanks extending below the footplate, and its filler still at the rear of the tank


GWR 1154 at Old Oak Common

1154 at Old Oak Common, with wide tanks. Note the front step has been placed in front of the valance, rather than the conventional behind the valance position.


GWR 517 class 1164 at Oswestry, 7 June 1936

1164 at Oswestry, 7 June 1936, with wide tanks and a Collett smokebox. It has acquired larger-diameter buffer heads.


Swindon 3521 Class

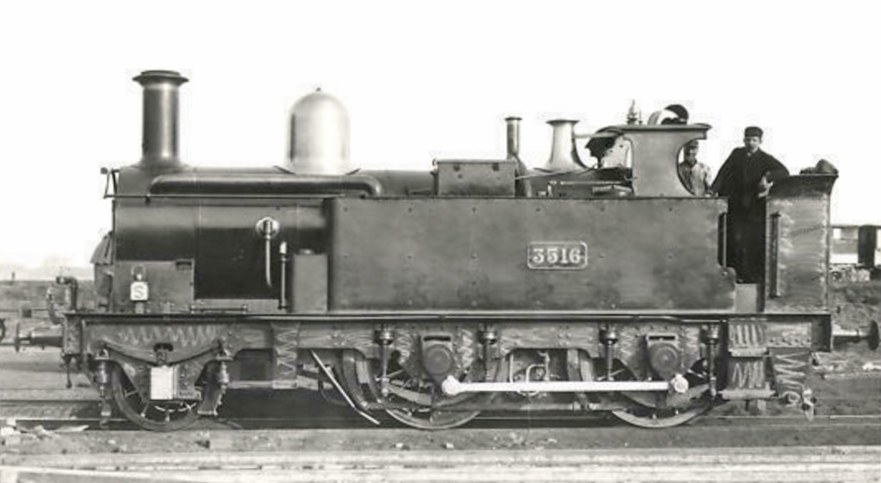

The short and unhappy history of the 3521 class as rather hopeless 0-4-2 tanks is dealt with in the 4-4-0 article. They had P Class (Dean Goods) boilers – larger than any other 0-4-2s, a 7' 6" + 10' 6" wheelbase and a reluctance to stay on the rails.

Rebuilding, updating and withdrawal: Swindon 3521 Class

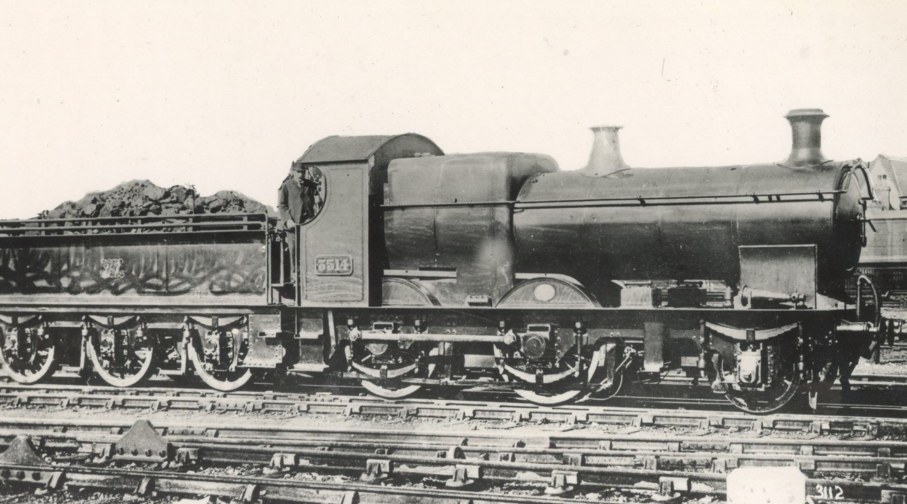

Suffice to say that by the end of 1892 none was left running as an 0-4-2, and by 1903 all were 4-4-0 tender engines! See the 4-4-0 article for more details. Some good pictures of the class in their later years can be found on the Warwickshire Railways site.


Wolverhampton 3571 Class

Just ten of these 0-4-2Ts were built in 1895–7. They can be considered to be an enlargement of the 517 class: they had a larger (U Class) boiler and different external framing for the trailing wheels. The wheelbase was 7' 4" + 8' 2", the same as the last of the 517s.

Rebuilding, updating and withdrawal: 3571 Class

These had a quiet life compared to the 517s. Belpaire fireboxes appeared from 1912. Various enlarged bunkers were fitted, and often rear spectacle plates on the bunkers. None were autofitted, and only one received an enclosed cab.

Two went in 1928/9, but the rest survived into the 1940s. Three lasted until 1949 and British Railways, but by then do not seem to have been in use for revenue trains.
GWR 0-4-2T 3573

3573 on Swindon dump. Photo by Ben Brooksbank, and reproduced by Commons Licence


GWR 1477, rebuilt as the prototype version of the 3571 class

1477 of the 517 class was rebuilt in 1894 as a precursor of the 3571 class


GWR 3579 at Chester

3579 (at Chester) retains its original bunker but has acquired Collett parallel buffers. Toolbox positions varied on this class.


Swindon Metro Class

The 2-4-0T "Metros" – short for Metropolitan, as many worked over the Metropolitan Railway lines – did not exist in quite such variety as the 517 class, but it was perhaps a close run thing. They were built between 1869 and 1899, and some of the early ones were withdrawn as early as 1903/4.

As well as the different wheel arrangement they had bigger boilers than the 517 class, and tended to be longer and heavier, although the ranges of weights overlapped slightly.

The first lot of Metros, the 455–470 series, had 7' 3" + 8' wheelbase, 5' 0" drivers, 3' 6" leading wheels, 16" diameter cylinders, 740 gallon tanks and T class 140lb psi boilers. They had a rather odd footplate arrangement, swept down over the leading wheels from buffer height, up over the driving wheels, then back down to buffer height for the crew, who had no cab. Add to this a decidedly early looking flared chimney and as built they appeared to be very much an "early" locomotive.
Drawing: Small Metro Class as built

Partially conjectural drawing of one of the 455 series of Metros as built.

Successive lots introduced

1871 (locos 613–632):
  •   7' 3" + 8' 3" wheelbase
  •   800 gallon tanks
1874–1878 (locos 967–986, 1401–1420):
  •   7' 9" + 8' 3" wheelbase
  •   External axleboxes for leading wheels
  •   straight running plate
  •   820 gallon tanks
1881/2 (locos 1445–1464):
  •   Domeless boilers, not T class
  •   Cabs (except locos with condensing apparatus)
1892–4 (locos 1491–1500, 3561–3570):
  •   T class boilers again
1899 (locos 3581–3600):
  •   1100 gallon tanks
  •   revised front suspension
Drawing: Large Metro with condensing apparatus.

Large Metro with condensing apparatus: a "Get Wet". The front axles on the large Metros had volute springs.


629, from the second batch of locos. This isn't quite in original condition (it has a half-covered cab), so it is very difficult to date, but shows how the frame is swept down over the inside-bearing leading wheels. GWR Metro tank 629 in early condition


Small Metro 1492, c 1900, with a tall thin chimney GWR small Metro tank 1492, c 1900


Large Metro condenser 1407, c 1900 GWR small Metro tank 1492, c 1900


GWR Small Metro tank 968 in 1904

Small Metro condenser 968 in 1904, with side clack valves prominent. The loco was withdrawn in 1906, as a consequence of the electrification of the widened lines through to Moorgate. The destination board, tucked behind the handrail, reads Addison Road. Image courtesy Adrian Marks


Large Metro tanks marshalling trains in the up bay lines at Southall GWR large Metro tanks at Southall


GWR large Metro tank 1411 and train, c 1905

Large Metro tank 1411 with a long excursion train, c 1905. This engine has recently received larger tanks.


GWR large Metro class condenser tank and train at Friars Junction, c 1905

A large Metro condenser tank purrs through Friars Junction on the down relief with a short train, a 4-coach set sandwiched by a strengthener all-3rd and a couple of vans, probably Siphons with empty churns. The train is probably slowing down for a stop at Acton, which is a few hundred yards to the west. The Acton Wells branch rises away from the GWR mainline on the left, and the overbridge carries the North & South Western Junction Railway line between Willesden Junction and Kew. The arms on all the up signals shown here on the mainline are 5' long, and the distant arms are still painted red. Probably between 1903–1905. Metro tanks were common and very lively performers on Paddington suburban services. For the condensing locos, condensing mode tended to be used only in tunnels, otherwise the water in the tanks got too hot.


Rebuilding, updating and withdrawal: Swindon Metro Class

The first major changes affected the 455 and 613 series, which were rebuilt with straight running plates, and a 6" increase in the wheelbase between the leading wheels and the driving wheels. This left the 455s as 7' 9" + 8' and the 613s as 7' 9" + 8' 3". The 455s always retained this shorter wheelbase.

Boilers started to be replaced in the normal course of things from late in the 19th century, but these were always variations on the T Class rather than different styles of boilers as happened in so many other classes. At the same time they normally gained larger tanks and various increases in bunker capacity. In 1898/9 30 of the engines with the medium sized tanks received larger 1080 gallon tanks and revised front springing to make place for them: they were then, with the 3581 series which was built shortly afterwards, known as Large Metros. So the Small Metros were those of the initial lot with the 3" shorter wheelbase, and Large Metros were those of the succeeding batches which carried 1080 gallon tanks and the nest of volute springs for the leading wheel suspension. Like all the other classes they received thicker tyres at the end of the 19th century, bringing the nominal wheel sizes up to 5' 2" and 3' 8". For tank engines, the Metros were comparatively wide, at 8'4" over tanks.

A complication with the Metros is condensing gear. Until electrification of the Metropolitan lines in 1903 the GWR maintained a fleet of about 50 locomotives with condensing gear for use on the underground – or at least subsurface – lines, the majority of which were Metro tanks. The gear seems to have been readily removable, and locomotives gained and lost the gear from time to time, and with it cabs, as locos with the condensing gear were normally cabless – sometimes known as the "get wets". The gear tended to be used on large engines with the 1100 gallon tanks once they were available, but there were exceptions in plenty. After electrification (c 1905) only about a dozen condensing locomotives were required, six of them large Metros (3567, 3568, 3570, 3586, 3591, and 3592), mainly to run freight trains to Smithfield Market. The other condensing-fitted locomotives were the 633 class 0-6-0Ts.
Drawing: Small Metro Class in the 1930s

455 series (Small) Metro to diagram K. Belpaire boiler and open cab. There were also enclosed cabs.

Drawing: Large Metro showing the enclosed cab.

Large Metro in final form with enclosed cab and belpaire firebox.

One locomotive, 3593, was converted to a 2-4-2 in 1905, with an enclosed cab and a very much enlarged bunker, but the expanded experimental wheelbase was not repeated. Another loco, 3596, was fitted with an enclosed cab and enlarged bunker.

Belpaire fireboxes appeared from 1910. Yet larger bunkers appeared from this time, and the earlier engines at least received an 11" rearward extension of the frames to support a larger bunker, which later ones seem to have had from new. From 1924 Collett style bunkers with the overhanging extension at the top of the bunker appeared, as did (other than on condensing fitted locomotives) fully enclosed cabs. A great variety of shapes and sizes of bunker were fitted: there seems to have been no pattern at all. Around 40 were autofitted in the late twenties and early thirties, presumably to compensate for life expired 517s before the 48xx class were available.

Swindon AE shop in 1907

Swindon AE shop sometime after 1910, with a couple of large Metros receiving attention in the foreground

Filler and toolbox positions varied, for both small and large Metros.

Non-condensing locomotives were extensively used on London area suburban services, finally disappearing from those services only when the 61xx large Prairies began to arrive in 1931, but they were also used on other branch and local work, mostly in the Southern division. They were also used on some quite fast main line trains – a Gloucester to Cardiff service for instance. Once autofitted they scattered even more widely.

A few of the class were scrapped around 1905/8, presumably surplus to requirements after the Metropolitan electrification. A few started to go from 1928, but the majority ran into the 1930s when withdrawals started in earnest. Around 25 survived until after the war, all of them from the lots built after 1891, and ten large Metros from the last two lots built survived to British Railways. All were gone by 1950.


Small Metro tank entering South Brent station

Overtaking a goods in the down refuge siding, a small Metro tank coasts into South Brent with a short down local train, c 1910. The loco is probably one of the early 455 class, because of the high tanks modification. The leading 4-wheel PBV diagram V2 has been converted to single-pipe gas lighting. At South Brent there were pairs of distant signals, each for the up main, down main and branch, with each inner distant close to its home, each inner distant and its home being worked from the same lever. In effect, the inner distants are acting as 'repeaters'. The refuge siding was later converted into a loop.


GWR small Metro tank 617

Small Metro 617, with a Wolverhampton bunker, a rear spectacle plate and a Collett smokebox, at Stafford Road shed, c 1930


Large Metro condenser 3586, fitted with tripcock gear for working into the suburban platforms at Paddington and trains to Smithfield Market. It would later receive an enclosed cab, and be one of the last survivors (see below). GWR Large Metro condenser 3586


GWR small Metro tank 975

Small Metro 975, with Churchward bunker, probably early to mid-1920s. A large Metro is behind 975.


GWR small Metro tank 623

Small Metro 623, probably early to mid-1920s.


GWR small Metro tank 459 at Swindon

Small Metro 459 at Swindon, probably late 1920s, with open cab and Collett bunker. Although its tanks are of the same length as other Small Metro locos, these are higher, giving it a greater water capacity.


GWR Metro tank 470 at Newton Abbot

Autofitted Small Metro 470 at Newton Abbot. The heads of the flushbolts securing the large diameter bufferheads to the smaller diameter ones can be seen.


GWR large Metro tank 1417 at Swindon in 1926

Resplendent after a major overhaul and repaint, large Metro 1417 at Swindon in 1926, with a closed cab, Collett bunker and a topfeed boiler. Its tripcock gear and nameboard brackets have been retained, indicating it is probably still earmarked for Paddington suburban services. It was withdrawn two years later.


GWR large Metro tank 1420 at Paddington in 1927

Open-cab large Metro 1420, with its original bunker, and also with a topfeed, takes a suburban out of Paddington. The train compromises a set of six 1925-built low-roofed articulated stock together with a strengthener 7-compartment all 3rd clerestory, possibly diagram C4, still with footboards on its 6'4" bogies. The 3-position electric semaphore is of US origin. 30 April 1927.


GWR large Metro tank 1406

Large Metro tank 1406, June 1929, with a non-standard arrangement of handrail on the bunker


GWR small Metro tank 1498 at Oxford, 9 April 1927

Small Metros 1498, above, at Oxford on 9 April 1927, and 1499, below, in 1930. The closed cab and Collett bunker, and whistles moved to the front of the cab, are typical of the look of many of the locos in their last years. 1499 has acquired larger-diameter buffer heads.

GWR small Metro tank 1499 in 1930


Large condenser Metro 3568 at Old Oak Common, August 1932

Large condenser Metro 3568 at Old Oak Common in August 1932. It would soon lose its condensing apparatus and tripcock gear, and be fitted with ATC to work on the Fairford branch.


Large Metro 1404 at Addison Road. The loco was withdrawn in 1934. GWR large Metro tank 1404 at Addison Road


GWR large Metro tank 3586 at Llantrisant in August 1949

Few Metro tanks outlived WWII, but the survivors lasted until 1949. Here is 3586, its right-hand side toolbox having been moved from tanktop to footplate, at Llantrisant in August 1949, a few months before withdrawal.


Swindon 3501 & 3511 Classes (Stella tanks)

The 3511 2-4-0Ts were a tank engine version of the Stella Class 2-4-0s, presumably a part of Dean's standardisation exercises. They were a much larger engine than the Metros with 17" by 26" cylinders and Class P (Dean Goods) boilers. Originally they carried condensing apparatus for use in the Severn Tunnel.

3501–10 were similar, but built as convertibles for the broad gauge.


3504 in early broad gauge convertible 2-4-0T form GWR Stella 3504 in early BG convertible form


3516 in 2-4-0T form with condensing apparatus. The tank vents are joined together. GWR Stella 3516 condenser in 2-4-0T form


Rebuilding, updating and withdrawal: 3501/3511

The 3501s were all converted to tender engines, some whilst they were still running on the broad gauge. All were running as members of the 2-4-0 Stella class by 1892. The 3511 series followed them into the Stella Class and lost tanks and gained tenders in 1894/5.

GWR Stella 2-4-0 3501 at Cardiff General

Stella 3501 as rebuilt in tender form, at Cardiff General. The loco still has slide clacks and flared wingplates at the front at this time.


GWR Stella 3514

The GWR didn't do 'ugly' often, but putting a big Belpaire and a BR0 boiler on a dainty Stella chassis came very close.


GWR Stella 2-4-0 3518 at Wellington shed

Stella 2-4-0 3518 at Wellington shed, towards the end of its life, running with a 2500g tender.


Swindon 3600 Class

Even though the prototype was built under Dean's tenure these had a something of the look of the Churchward standard classes. They had many of the features that were to become characteristic of the standard classes, combined with others in common with the Aberdares and other classes from the end of the Dean era. The later 56xx 0-6-2 tanks had quite a resemblance to the 36xx.

A prototype, then numbered 11, was built in 1900 and thoroughly evaluated, and then batches, comprising 30 locomotives in total, were built in 1902/3. They had 5' 2" driving wheels – the Dean Goods size – and 3' 8" carrying wheels. The locos had spacious cabs for their time and large front porthole windows, earning themselves the nickname of 'Birdcage tanks'.

The prototype and the first production lot had parallel Std 3 boilers, but those from 3621 were built with taper Std 3s.
Drawing: 3600 Class

3600 Class to diagram H. This is one of the last batch when fitted with a superheated boiler.

The prototype had a 3' 6" rear overhang, the first 20 4' 0", giving increased water capacity, and the last 10 4' 1", giving a further small increase in water capacity, there being a water tank under the coal space in the bunker as with most of the large Churchward tank engines. Tank capacity was nominally 1900g.

They had bi-directional water pickup apparatus, causing what must have been an entertaining incident with the prototype when it picked up water far faster than the air vents in the tank could cope with and split the side tanks open! Thereafter they had much larger air vents.

Rebuilding, updating and withdrawal: 3600 Class

No 11 was renumbered 3600 in the 1912 renumbering. All those built with parallel boilers had taper boilers by 1915. The detail design of the boilers changed over the years as Churchward optimised the standard boiler designs. They gained superheating between 1912 and 1927. The earlier ones received larger (deeper) bunkers in time, but never the overhanging rear extension seen on most other classes. Water scoops were removed in 1921. Surprisingly, for a class extensively used on suburban work, ATC fitting did not commence until 1928. Their weight excluded them from general branchline use, and they were withdrawn between 1930 and 1934, having been made redundant by the standard large 2-6-2 tanks on their normal suburban passenger work.

GWR 3611 at Acton in 1904

3604, with its original parallel boiler and tapered chimney, hurries a suburban through Acton in 1904


GWR 2-4-2T 3615 at Paddington

3615 at Paddington, with an original roof, early bunker style, flush-riveted smokebox, smokebox damper and early pattern lubricator and pipe cover


GWR 2-4-2T 3626

3626, with later roof, later bunker, rear bunker fender, later lubricator and pipe cover, and snaphead-riveted smokebox


GWR 2-4-2T 3610

3610 shunting at Kensal Green in October 1932. It has aquired small tank vents and Collett parallel-bodied buffers, but has retained its porthole cab windows. Its D3 boiler has short valve stems. It was withdrawn a couple of years later.


Swindon 2221 Class

Built between 1905 and 1912 with Standard No 2 boilers, these were tank versions of the 4-4-0 Counties, and were therefore known as the 'County tanks'. They were built to work the growing number of faster suburban services from Paddington. The first two batches had square dropdown frames at the front, the third (and last) batch having the later curved style, and cylinders set lower. They were fitted with bi-directional water scoops. The initial shape of the brake hangers on the driving wheels was curved, following closely the perimeter of the wheel, but was soon changed for a 'straight down' style as seen in the pictures here. The class was an early recipient of ATC, the first locos being fitted in 1908, with most of the rest of the class in 1915–1916. (At that time, the equipment was still known by its original name of 'Audible Cab Signalling', a term remaining in use, and latterly supplemented by 'Automatic Train Control', well into the 1920s.)

Rebuilding, updating and withdrawal: 2221 Class

The only significant changes to the class were the fitting of topfeed, superheaters and enlarged bunkers to the early locos, and the removal of the bogie brakes. Superheating was fitted to the final 1912 batch as built, and was fitted to the rest of the class between 1910 and 1914. The water scoop equipment was also eventually removed. Designed to replace the 3600 class tanks on suburban work, they had a reputation for rough riding like their 4-4-0 counterparts, and the acceleration from their large diameter driving wheels was not as good as the smaller-wheeled large Prairie tanks, which superseded and replaced them. The last 2221 class loco was withdrawn in 1934.

GWR County tank 2241

2241, one of the last batch, in early condition with bogie brakes, small bunker and water scoop domes visible on top of the tanks

GWR County tank 2237

A splendidly turned out 2237 in the early 1920s, with an enlarged bunker and bogie brakes still in place

GWR County tank 2225 at Banbury

2225 at Banbury, towards the end of its life, with an enlarged bunker, a cast-iron tapered chimney and Collett tapered buffers

GWR County tank 2221 at Paddington, 1931

2221 filling up at Paddington in 1931. The loco was unique in the class, having cab sides flush with the sidetanks and bunker.


Swindon 4600

This one-off design was not successful. Intended as a potential successor to the Metro tanks for branch and light suburban work, 4600 emerged in 1913 and had 5'8" drivers. In the event, it proved too heavy and inflexible for branchline use, but not as fast as the larger County tanks on suburban work or as powerful as the large Prairies. In 1915 the front bogie was moved forward by 4" in an effort to improve the riding quality and weight distribution. It was superheated in 1918. These modifications did little to counter the inherent limitations of the original design, and the loco was withdrawn in July 1925.

GWR 4600 4-4-2T


1101 Class

Six powerful and businesslike looking 0-4-0 side tanks ordered from Avonside of Bristol and delivered in 1926. The side tanks were cut away at the front, and almost became pannier tanks. They were basically of a standard Avonside design – Cadbury's, for instance, had similar engines – with some small modifications for the GWR. The boilers were always the Avonside design and never replaced with a GWR type. The semi pannier tanks were certainly only on the GWR engines, and if I interpret the photos correctly, they had GWR directly loaded safety valves.

Rebuilding, updating and withdrawal: 1101 Class

The 1101 had their cab roofs rounded off to improve clearances within a very few years of purchase, and gained GWR safety valve covers in the 1930s. Other than that they were little altered until withdrawn in 1959/60.

None were preserved, but Cadbury's No 1, also built by Avonside and with the Birmingham Railway museum, is clearly a close relative.

Drawing: 1101 Class

1101 Class. I didn't locate a good drawing of the valve gear so this is partially conjectural. Modellers beware.

GWR 0-4-0T 1105 at Danygraig Deport, 1946

1105 at Danygraig Depot, 1946. Photo by Ben Brooksbank, and reproduced by Commons Licence. Click on the picture for a larger version.


1106, new in 1926, with its original dome, safety valves and roof GWR 0-4-0T 1106, in original 1926 condition


4800/1400 Class

1447 at Wallingford, 26 August 1947

H C Casserley's classic view of 1447 basking in a hot summer at Wallingford, 16 August 1947

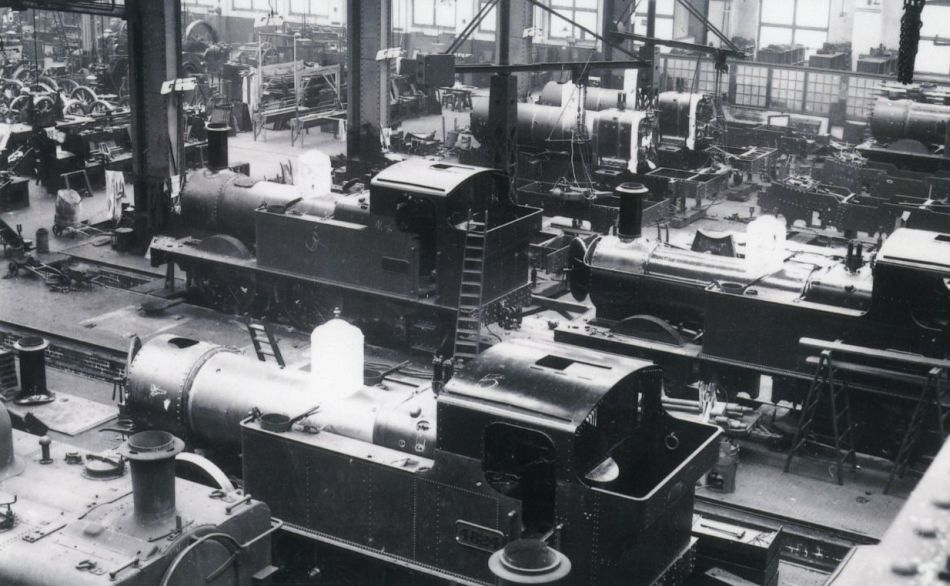

By the mid-20th century the 517s and Metros were wearing out and needed to be replaced. As with the light 0-6-0 tanks, the 4800 essentially followed the Wolverhampton lines of development. It was very much a case of taking a proven configuration and redesigning it using the best features of their predecessors in their fully developed state and adding all the latest engineering improvements for increased running time between overhauls and easier maintenance.

Cook discusses the genesis of the 0-4-2Ts, along with their relatives the 54/64/74 classes in some detail in one of his books. The drawing office had a shopping list of mutually exclusive features including a desire to have leading and trailing wheels, even bogies, through light weight, good adhesion and low build and running costs. In the end they picked on almost exactly the same compromises as their predecessors of 50 years before. There were 75 4800 built between 1932 and 1936, with similar major dimensions to the ultimate long-wheelbase configuration of the 517 class (i.e. 7' 4" + 8' 2" wheelbase). The boiler pressure was increased to 165psi, the cylinders reduced to 16", and the locomotives were fitted with generous sized cabs. The tank capacity was 800g. The official bunker capacity was 2T–13C. The boiler, called the SS class, was very similar to the S Class, but with a drum head smokebox. All were autofitted.

Collett is often criticised about the supposedly antiquated nature of the 4800s, but I've never seen a justification of this in engineering terms. From a business point of view using a 41-ton 6-wheel locomotive to haul one and two coach trains would appear to make far more sense than using a 63-ton ten-wheel locomotive as was done by other lines. The use of inside cylinders is also criticised, but I doubt that passengers would have relished the likely discomfort of being hauled by a short wheelbase outside cylinder 0-4-2.
Drawing: 4800/1400 Class

4800/1400 Diagram M. This shows the class before topfeed was fitted

GWR 0-4-2T 4830

4830, with post-1936 bunker steps added to the fireman's side, but before apertures were put in the lower part of the cab steps, and still with 'GREAT WESTERN' insignia, at Banbury in 1937

On a few locos, apertures were not introduced on the lower half of the cab stepsGWR 0-4-2T 5810 cab steps

Rebuilding, updating and withdrawal: 4800 Class

As with most Collett designs changes were few over their lifetime. The last batch were fitted with whistle shields to divert steam from the whistle, and a larger pattern was eventually fitted to all of the class. Initially, locos were fitted with non-topfeed boilers, but the topfeeds and their characteristic tall casings soon replaced them. However, a number of non-topfeed boilers continued to exist, and locos could appear with either type after a visit to the works. Steps of the fireman's side of the bunker were gradually added, starting in 1936, topfeed was introduced from 1944, and apertures were made in the lower half of the cab steps on most but not all locos. Toolbox position varied, either fitted central to the wheel splasher or in a slightly more forward position.

In 1948 they were renumbered in the 1400 series, as the 4800 series was required for oil burning 2800. This of course saw many of them assuming numbers that had previously been used for the 517 class or for Metros.

They started to be withdrawn from 1956 as branch lines were closed or DMUs took over light passenger traffic, and the last went out of service in 1964. Four are preserved: 1466 (4866) is particularly notable as being the first locomotive bought by the nascent Great Western Society.
autogear on the front of 0-4-2T 4866 at Didcot

Autogear on the front of 4866 at Didcot


The lower portion of the front step of the first locos was angled back, as in this view of 4805 ex-works in 1932, but was soon changed to the later joggled style GWR 0-4-2T 4802 initial front step style of 1932 Packed buffer stocks on 14xx class

Many members of the class had a packing piece behind the buffer stocks. The reason for this is not clear, but may be related to the increasing interworking with stock with 1'10½" buffers or to improve the connection of the autogear linkage


Parallel-sided topfeed casing. The covers for the lubricator and blower pipes from the boiler to the smokebox are separate. topfeed casing and lubricator and blower covers on the GWR 48xx


GWR 0-4-2T 4851 at Exeter

4851 at Exeter

GWR 0-4-2T 1432 at Ellesmere

1432 in lined green at Ellesmere, with a Hawksworth autotrailer, on the Wrexham shuttle. Probably 1957. The loco has a belt seam on the tank.

0-4-2T 1444 in lined BR(W) green livery at Reading, 28 September 1958

With a whistle shield and topfeed boiler, 1444 is in lined BR(W) green livery at Reading shed, 28 September 1958. Two battery boxes are fitted behind the rear step, one for the ATC in the loco cab, the other for feeding an autotrailer bell.

Autotrailer linkage

(this preserved replica seems to be brass plated)
GWR autotrailer linkage


5800 Class

The 19 members of the 5800 were essentially the same as the 4800, but not autofitted. ATC was fitted to 5801/3/9–13/5/6/9 in 1936–8.

Rebuilding, updating and withdrawal: 5800 Class

This sub-class ran out of work rather earlier than the autofitted engines, and by 1954 six of them were in store, out of use, and the majority were withdrawn from 1957–1959, with one surviving until 1961. None have been preserved.

GWR 0-4-2T 5801 at Dovey Junction

5801 at Dovey Junction

Drawings are approximately redrawn from Russell but are strictly representative and may contain errors.


1  The Locomotives of the Great Western railway Part Six Four coupled Tank Engines, N J Allcock, F K Davies, H M Le Fleming, P J T Reed & F J Tabor, The Railway Correspondence and Travel Society. This is the primary source for this piece.

2  The Locomotives of the Great Western Railway Part One: Introductory Survey, N J Allcock, F K Davies, H M Le Fleming, P J T Reed & F J Tabor, The Railway Correspondence and Travel Society.

3  Swindon Steam 1921–1951, K J Cook, Ian Allan Ltd, 1974 0 7110 0511 7 p63 and on.

4  An Outline of Great Western Locomotive Practice, H Holcroft, Ian Allen Ltd, 1971 SBN 7110 0228 2 p77

5  Cook, p85 and on.

6  Great Western Locomotive Design, a Critical Appreciation, Rev John C Gibson, David & Charles, 1984. ISBN 0-7153-8606-9 p31.

Excellent album of detail pics of preserved 1450 by Brian Daniels
