A Beginner's Guide to GWR outside-frame 4-4-0s

by Jim Champ

(pictures from the webmaster's collection unless otherwise credited)



This page covers the Dean and Churchward designs, and doesn't attempt to cover earlier locomotives. They are probably amongst the most confusing of GWR types since under Dean and Churchward a kind of mix and match approach was adopted and classes merged and separated, with locomotives being rebuilt and changing class, but not necessarily number, with different designs of boiler. Whereas with the large 0-6-0 tanks one can identify a sort of merging to a single final configuration, nothing of the sort happened with the 4-4-0s.

A curious feature of their large engine policy was that the GWR scrapped its express large-wheeled 4-4-0s very early – in the late 1920s and early 1930s, including the only modern inside frame 4-4-0 class, the Counties. At the same time the Southern and LNER were still building more 1. The mixed traffic 4-4-0s, on the other hand, lingered on until into the 1950s, and one gains the distinct impression that the Western never really worked out what they wanted to replace them with!
GWR City 3440 'City of Truro' on the Severn Valley Railway

Preserved 3440 'City of Truro' on the Severn Valley Railway
(photographer unknown, so if it's your picture, please let me know for a credit)

Maintenance, rebuilding and its implications

When a major overhaul was due the Great Western would dismantle a locomotive virtually down to its component parts 2. The boiler in particular would take longer to repair than the rest of the locomotive, so by the beginning of the 20th century an alternative boiler would be fitted as soon as the rest of the locomotive was ready in order to bring the locomotive back into service. Because of the interchangeability of boilers this boiler might well not be the same design as the one that came off.

In the case of the 4-4-0s there were different locomotive classes which had common chassis designs and were only really distinguished by the boiler class used, and conversely the same boiler class could be used with quite different locomotive classes.

Within classes, sub classes and the like the 4-4-0s can be arranged by wheel size and boiler size. There were five sizes of boiler, and large (6'8½") medium (5'8") and small (5'2") wheels and different classes had different combinations. There were also variations in frame design, not to mention a good deal of reinforcement over the years, although one could make a sweeping generalisation that none of them were ever really strong enough.



The RCTS volume on GWR 4-4-0s 3 lists over 50 variations in boilers used on the classes mentioned in this piece. However, for our purposes we can list six basic 'classes' 4 of boiler used on them.
Class Name Barrel length Barrel diameter Firebox length
B Std 2 11' 5' tapering to 4'5" 7'
C Std 3 10'3 5' tapering to 4'5" 7'
D Std 4 11' 5'6" tapering to 4'11" 7'
N Duke 11' 4'5" 5'1"
P Dean Goods 10'3" 4'5" 5'4"
W Badminton 11' 4'5" 6'4"

Boilers seem to have been the subject of continuous development, especially during the Churchward era. The 4-4-0 boilers were among the types that Churchward worked on most while he was creating his standard boiler style. The early standard boilers about the turn of the century had parallel barrels, not tapered: the taper boilers were introduced as part of this development work 5. Boiler pressures increased over the years too, from 150psi on the early Dukes to 200psi on the later standard boilers. The first Standard 2 boilers had a parallel barrel and a significantly raised belpaire firebox. Apart from the firebox height the dimensions were similar to the Duke type. There don't seem have been any built with domes. By 1903 all new Standard 2 boilers were tapered. The only other major changes in the Standard 2s were the introduction of superheating from 1910, and topfeed soon after.

The Standard 3 Boiler was a Standard 2 with a shorter barrel and had a similar development history

The Standard 4 was the largest boiler used for 8-wheeled engines: effectively an enlarged version of the Standard 2, with both a wider barrel and a deeper firebox.

Class N boilers had round top fireboxes at first. Early belpaire boilers had fireboxes raised a few inches above the barrel and a number of these were domeless. Otherwise these boilers always carried large domes. The later boilers all had belpaire boxes with the top of the barrel and the top of the firebox level They started out at about 150psi, moving through 165psi to 180psi at the end, and were later superheated.

Class P boilers were domed parallel boilers and were used on the larger pannier tank classes as well as the Dean Goods.

The Class W boiler used on Badmintons in their early years was a precursor of the Standard 2, of similar overall dimensions, but with a shorter firebox. They all had belpaire fireboxes – the first to be used by the GWR – and came in both domed and domeless configurations.



Frames always seemed to be a source of problems with these locomotives, and were frequently strengthened during the course of their careers. The 'normal' footplate height was too low to clear the outside cranks, so had to be raised. Locomotives built under the Dean regime had curved frames, rising in an elegant curve up and down over each wheel hub, whereas in the Churchward era they were straight, with a single arc taking the footplate up to a higher level over the driving wheels.



Early locos were initially fitted with the 'swing hanger' type of bogie, which originated in the Dean era. Early bogie frames were flush-riveted, but snapheads first appeared on Badminton 3293 in April 1898, and became the norm thereafter. The early bogies had shallow sideframes, but these became deeper, and in 1903 became full depth to the top of the hornguide straps.

The eclectic Churchward favoured the style of suspension featured on the 'Frenchmen', purchased in 1902, and adopted the design for GWR locos built from c 1904. This became known as the 'de Glehn bogie'. The Birds (the last series of the Bulldogs) and the Flowers were built with de Glehn bogies. The design would later be adopted by the LMS and BR.

Both types of bogie quickly acquired strengthening patches for the inner spring shackle mountings, to reduce frame stress. The patches were small at first, but later became larger. (The photos below show these strengthening patches.)

de Glehn bogies were retrofitted to 13 of the Cities and about 20% of the straight-frame Bulldogs and Atbaras. (Of the curved frame Bulldogs, only 3336 is known to have received a de Glehn bogie.) None of the Dukes got them. 8 of the Dukedogs had them, inherited (mostly) from their donating Bulldog chassis. There seems to be no rationale behind the seemingly random application of de Glehn bogies to these early 4-4-0s or why relatively few were so fitted. It seems the Badmintons kept their swing hanger bogies, and these had a distinctive and different rivet pattern from the other swing hanger types.

A page showing various deep-frame 4-4-0 bogies is given here.

'swing hanger' shallow-frame bogie, underneath curved frame Bulldog 3330 GWR swing-hanger bogie

another 'swing hanger' bogie, but with a deeper frame, underneath Duke 3271 'Eddystone' on 27 June 1936

(these two 'swing hanger' bogie images courtesy Tony Sheffield)
GWR deep frame 'swing hanger' bogie

'de Glehn' bogie, underneath City of Truro GWR 'de Glehn' bogie


Numbering and renumbering

The 4-4-0 classes were significantly affected in the renumbering of 1912 17, because, as will be seen, the numbers had got very confused. Prior to 1912, the numbering scheme worked out by Dean allocated ranges to types of locomotive but successive batches were just added to the next available place in the appropriate range with no attempt to keep the various classes together. To make matters even more confusing, locomotives were rebuilt from one class to another with boiler changes without being renumbered.

Under Dean's scheme 3201–3600 were allocated for 4-coupled tender engines. Various 2-4-0s occupied 3201–3251, and the locomotives we are concerned with started at 3252 with the Dukes.

In 1912 the classes (with the exception of the 3521s which were left in a jumble) were brought together, but without the second digit grouping used later for classes with more than 100 engines, so, for example, Bulldogs were renumbered in 33xx and 34xx ranges. The surviving Dukes and the Dukedogs were renumbered in 1948 to clear the 3200 range for the 2251 class. Some of the Bulldogs were also scheduled to be renumbered, but were withdrawn before the numbers were needed for new 94xx tanks.

The Wikipedia pages for the various classes are a good resource for the numbering and name changes.



The odd men out – 3521 Class

Drawing: GWR 3521 Class

3521 Class with Standard 3 boiler

The 3521 class had perhaps the most convoluted modification history of any GWR class, and in their original form were arguably the worst locomotives ever built in any numbers in Great Britain! They were built as 0-4-2 tank engines and had a short 7'6" coupled wheelbase, and then a 10'6" gap to a trailing wheel which, according to every source I have seen 6 made them very reluctant to stay on the track. A further batch of 0-4-2Ts was built to broad gauge. A very short wheelbase trailing bogie was then added, which made little difference and yet 20 of them were built. A further 20 were built as convertible broad Gauge 0-4-4Ts and then converted to the narrow gauge.

So in 1899 these hapless machines were taken in hand and rebuilt to a quite astonishing extent: they were turned into 4-4-0 tender engines with new frames, bogies, and in many cases boilers too. They were also divided into two groups, 26 with P Class (Dean Goods) boilers, and 14 with the new and larger Standard 3 type.

The bogie wheelbase was 5'6" with 2'8" wheels, the driving wheelbase was 8'6" with 5'2" wheels, and there was 7' between the rear bogie axle and leading driver axle.

The smaller boilered engines started with round top fireboxes, but development of boilers was in full swing during their lifetime. They received Belpaire fireboxes, in most cases superheating and a couple with topfeed in the same way that Dean Goods and large 0-6-0 tanks with the same class boilers. They had the same large domes as other classes with this boiler design. They were withdrawn in the late 1920s and early 1930s.

The large boilered variety were (re)built with early Standard 3 boilers with domeless parallel barrels and a high raised belpaire firebox. They also followed the normal line of boiler development, gaining tapered boilers with topfeed, and in most cases superheating. Again they were withdrawn in the late 1920s and early 1930s.

Some authorities 7 are very scathing about these locomotives, but they did run a normal lifetime – over one million miles in some cases, so they must have been considered worthwhile in their final guise. Curiously they were not renumbered in 1912 – one would have expected the two sub classes to be separated as happened with the rebuilt Dukes.

GWR 3538 in original condition

3538 in original 1887 condition as an 0-4-2T

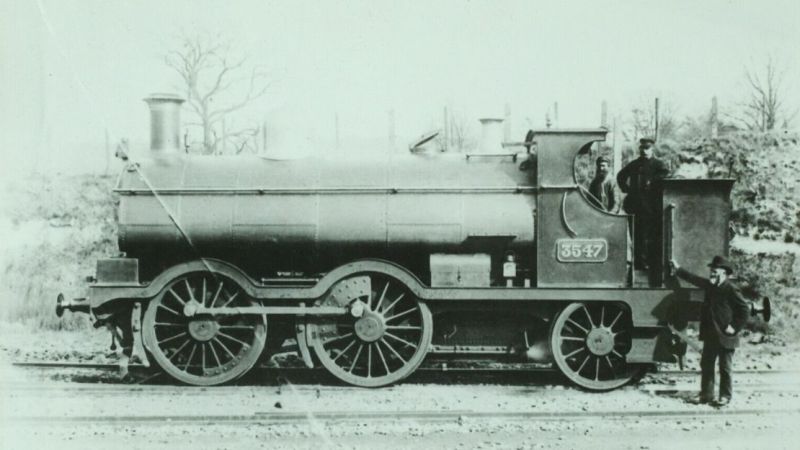

3547 as originally built to broad gauge in 1888 GWR 0-4-2T 3547 as built to broad gauge


GWR 3527 at Plymouth North Road

3527 in 0-4-4T mode at Plymouth North Road


GWR 4-4-0 3552 in early condition

3552 after rebuilding to early 4-4-0 condition, with a P-class parallel boiler and roundtop firebox, and running with a 2000g tender. The increase of the coupled wheelbase to 8'6" would suggest little if any of the original frames was used.

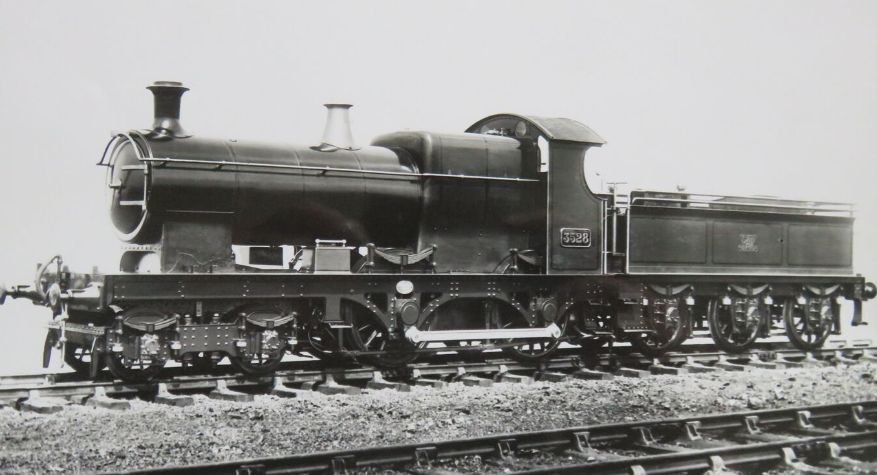

GWR 4-4-0 3528 in early condition

Showing a pronounced Churchward influence, 3528 was one of the locos rebuilt to a 4-4-0 with a Belpaire firebox and a parallel boiler set at a higher pitch. It is running with an early Dean 2500g tender with coal rails.


GWR 4-4-0 3559 in later condition

3559 in later condition, with a Standard 3 tapered boiler and belpaire firebox


The main group

Whereas the 3521 class was very much of its own, there was much commonality between the large and medium wheel classes.

Small boiler, medium wheels

These all had the same chassis dimensions, a 6'6" bogie wheelbase, 8'6" driving wheel wheelbase and 7'3" between trailing bogie and leading drivers. There were three basic frame designs used across the medium wheel classes, but as we shall see these were interchangeable.

Duke (or Devon) Class

Drawing: GWR Duke or Devon Class

Duke class in 1930s condition

The Dukes were pure Dean Locomotives and had curved frames. 3252–3291 were built between 1895 and 1897, and 3313–3331 in 1899. Nineteen (or 20 if you count 3312 Bulldog herself, which was never really a Duke) apparently selected more or less randomly were rebuilt as Bulldogs between 1902 and 1909. In the renumbering those not converted were given 3252–3291. All were built with swing hanger bogies, and none received de Glehn bogies later.

Boiler variations have been noted above. New standard domed Belpaire (type B4) boilers began to be fitted from 1903. The last of the roundtop firebox boilers was removed (from 3279) in 1917. Ten engines carried domeless boilers with a raised Belpaire firebox (type BR0) at various times. The last of these was removed from 3278 in 1929.

Dukes acquired superheating from 1911 and some had topfeed from 1913. In the early days some Dukes had straight nameplates on cab or boiler sides. A good number lost their names over the years, some because the names clashed with the themed names of new classes, and some because they were supposedly being mistaken by passengers for train destinations!

Most but not all acquired wider cabs, which concealed the rear wheel springs. Part of the frame reinforcing included a conspicuous tiebar between the hornstays.

They acquired piston valve cylinders in place of slide valves from 1915 on.

The Dean riveted smokebox fronts and dished smokebox doors were often updated with Churchward pressed fronts and doors from the mid-1920s, but old style smokeboxes could still be seen in the early-1930s.

ATC was fitted between 1930 and 1931 to all locos except 3252/7/9/62/77.

Dukes ran with a variety of tenders, initially the short 2000g, but these were superseded from a comparatively early stage by 2500g and 3000g types, the general favoured style being the ones with the cutout at the front of the flare, since this best matched the cutout shape of the loco cab. The locos surviving into WWII had their cabsheets flared out to work with Churchward 3500g tenders.

Withdrawals started from 1936, and 11 survived into British Railways ownership. Even without considering the Dukedog rebuilds the Dukes were longer lived than their successors the Bulldogs. No real replacement for the Dukes/Dukedogs with their wide route availability was ever built. The heavier 4300s and Manors took over much of their work, but when it came to yellow restricted routes only the 2251 0-6-0s and some of the lighter tank engines were alternatives. Twenty-nine were rebuilt as Dukedogs and in 1946 the survivors were renumbered into the 90xx series to make space for 2251s in the 32xx ranges.

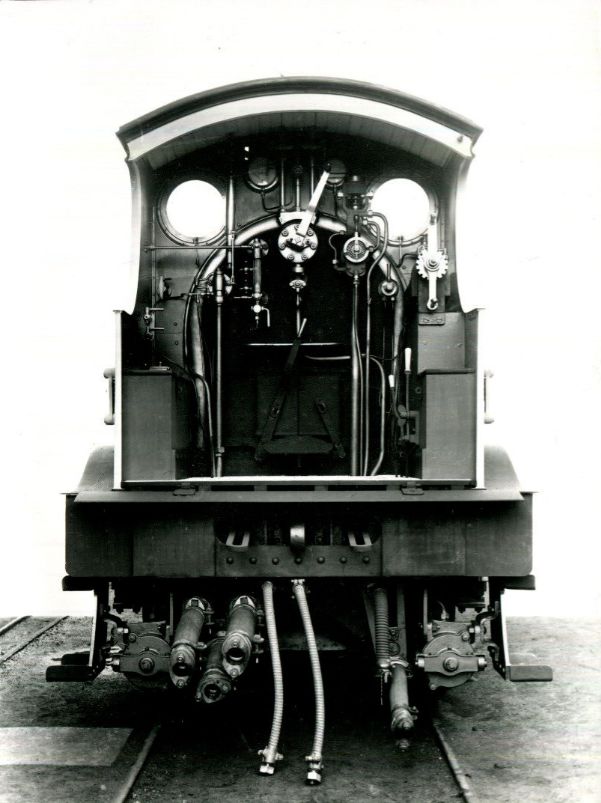

GWR Duke backhead

Rear view of Duke (probably 3252) in original condition


GWR Duke 3253 in original condition

3253 'Pendennis Castle' in original 1895 condition with straight nameplates, round-top firebox, narrow cab and side clack valves, and running with a 2000g tender. Chimneys on the Dukes were originally set in a rear position, as shown here, but were later moved forward.

GWR Duke 3287 'St Agnes'

3287 'St Agnes' in near original condition, with a 2500g tender, rather than its initial 2000g.

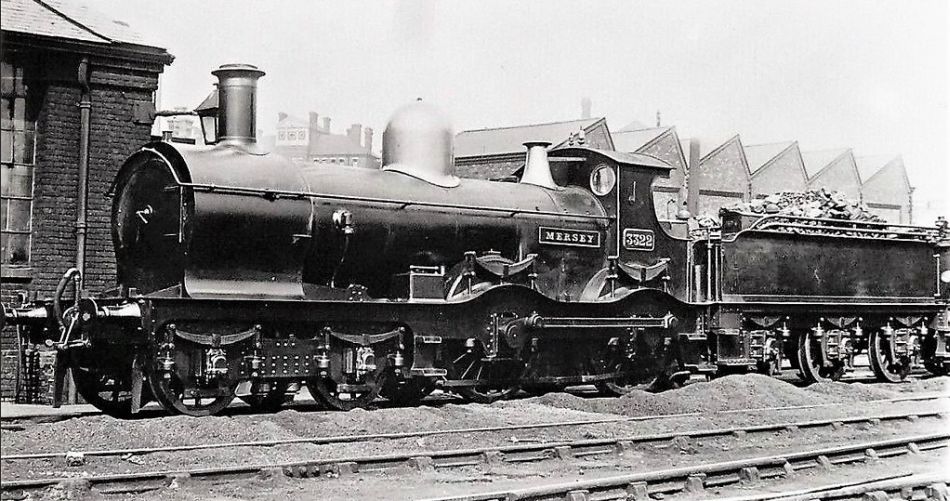

GWR Duke 3322 'Mersey'

3322 'Mersey' in original condition. It would be rebuilt later as a Bulldog (3314).

GWR Duke 3316 'Isle of Guernsey', at Westbourne Park shed c 1905

3316 'Isle of Guernsey' at Westbourne Park shed c 1905, with a belpaire firebox. It would soon be rebuilt as a Bulldog and renumbered 3312.

GWR Duke 3252 'Duke of Cornwall'

3252 'Duke of Cornwall', running with a 2000g tender. Date unknown, but probably post-1925, after blanking of the cabfront portholes.

GWR Duke 3268 'Chough'

3268 'Chough', with a topfeed, its numberplate high on the cabside, and still with its tall parallel chimney, paired with a 2500g tender

GWR Duke 3268 'Chough'

Pictured a few years later, 3268 has a different (non-topfeed) boiler, an updated Churchward smokebox front, a tapered chimney, and a larger tender

GWR Duke 3272 'Fowey'

3272 'Fowey', with a topfeed and cast tapered chimney, still retaining its portholes in the cabfront

GWR Duke 3283 'Comet'

3283 'Comet', with its narrow cab (which it retained throughout its life), topfeed and cast tapered chimney, and paired with a 3000g tender. Plain section rods and tiebars between the hornguides were common in later years. Small footplate steps were also fitted (from an unknown date).


3256 'Guinevere' at Ranelagh Bridge. Narrow cab, parallel chimney, and running with a 2500g tender. Probably mid-1920s. GWR Duke 3256 'Guinevere' at Ranelagh Bridge


3265 at Birmingham Snow Hill. It would be the prototype Dukedog in 1929.


GWR Duke 3263 'St Michael' at Swindon

3263 'St Michael' at Swindon, with a cast tapered chimney, and paired with a 3000g tender. The lower type of vacuum pipe was the norm for the class in later years.

GWR Duke 3282 at Newton Abbot in 1932

3282 at Newton Abbot in 1932. It gave up its name ('Chepstow Castle') a couple of years earlier to avoid confusion with the identically named Castle 4077. Unusually for this time, it is paired with a 3500g tender. A couple of years later it would have a non-topfeed boiler, its cab portholes plated over, and be running with a smaller tender. The ATC conduit under the footplate is routed straight, and the ATC battery box is mounted on the outside of the frames just in front of the leading driver. This position was rare, but was also seen on 3267 for a few years, 3291, and Bulldogs 3369, 3382 and 3407.


Medium boiler, medium wheels

Bulldog (3300) Class

Drawing: GWR curved frame Bulldog Class

Curved frame Bulldog Class in 1930s condition with Standard 2 boiler

Bulldog 3312 was built amongst a batch of Dukes, but given a slightly larger boiler as well as a few other experimental features. At the end of 1899 the first batch of Bulldogs, 3332–3352 was turned out after the last Dukes left Swindon, and no more Dukes were built. Unlike the Dukes, which had screw operated reverse, the Bulldogs were built with steam reverse 11, although the final 'Bird' series appeared with screw reverse. Many of the steam-reverse locos were fitted with screw reverse from the mid-1920s 18, and these can be identified by a small cover (for the screw reverse reach rod) on the front right-hand side of the cabside adjacent to the firebox. Bulldogs were built with steam brake, but the final 'Bird' series were fitted with vacuum brake. All the Bulldogs were built with swing hanger bogies except the Birds, which appeared with de Glehn bogies. A few of the earlier locos acquired de Glehn bogies later.


GWR Bulldog 3312 in original condition

3312 'Bulldog' in original condition

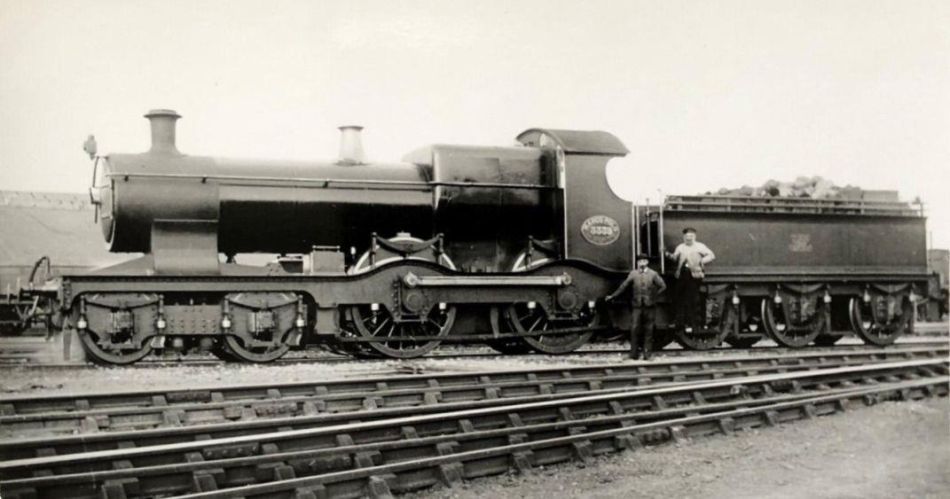

GWR Bulldog 3339 Marco Polo at Didcot c 1903

3339 'Marco Polo', in original condition with a parallel domeless boiler, at Didcot, c 1903. It would be renumbered 3327 in 1912.


GWR Bulldog 3330 'Orion'

3330 'Orion' in early-1920s condition, still with its early style of lubricator pipe cover


GWR Bulldog 3328 'Marazion'

3328 'Marazion' in mid-1920s condition, running with a 3000g tender with light springs


GWR Bulldog 3323 'Etona

Curved frame Bulldog 3323 'Etona'


GWR Bulldog 3340

Curved frame Bulldog 3340 'Camel', running with an early Dean 3000g tender, at Reading, probably in 1926.


GWR Bulldog 3306 'Armorel'

Curved frame Bulldog 3306 'Armorel', fitted with a No 3 boiler in 1933.


After the first twenty the remaining Bulldogs were built with straight frames. Batches built were 3353–72, 3413–32 and 3443–72. The earlier Bulldogs, rather than having the later standard style standard names on the splashers, had oval combined number and name plates on the cab sides, although some conversions retained the straight Duke nameplates for a while.

Drawing: GWR straight framed Bulldog Class

Straight-framed Bulldog Class in 1930s condition with Standard 2 boiler

The first 80 were all built with parallel barrelled No 2 boilers, and some of these continued in use, swapping between engines in the normal GWR style, until about 1913, although it was rare for an engine to be fitted with a parallel boiler after receiving a tapered one. As with the Dukes they were upgraded with topfeed, superheaters and piston valve cylinders between 1910 and 1925. Not all received the piston valves before scrapping though.

In the renumbering they were given 3300–3340 for the curved frames (the converted Dukes starting at 3300) and 3341–3440 for the straight frames.

Like all the outside-frame 4-4-0s, frame strengthening and tiebars between the hornstays were fitted at an early stage.

Some Bulldogs, both curved and straight frame, were fitted with the smaller and shorter Number 3 boiler as there were a good supply of these after the 36xx 2-4-2Ts were withdrawn, but Number 2s were in great demand. The locos involved were: 3306 (fitted 6/33), 3308 (fitted 8/33), 3369 (fitted 3/33), 3374 (fitted 9/34), 3376 (fitted 6/34, reverted to No 2 boiler 12/36), 3380 (fitted 2/33), 3383 (fitted 7/34, reverted to No 2 boiler 9/41), 3389 (fitted 11/33), 3391 (fitted 3/44), 3395 (fitted 1/44), 3400 (fitted 4/44), 3428 (fitted 6/34), 3430 (fitted 1/33), 3452 (fitted 12/44). Reference to withdrawal dates indicates the No 3 boilers were carried only for a comparatively short time, generally at the end of the life of the locos involved.

In the end no less than 160 – including the Bird series below – were built or rebuilt, making it one of the larger classes on the GWR. However, the very successful and more versatile 4300s took over much of their work, especially after the Hall class was introduced which in turn released the Moguls for lighter work.

Cabsheets were flared out from c 1930 onward to match the bodywidth of the Churchward 3500g tender, which became the later default tender for the class.

Withdrawals started in the early 1930s, including the Dukedog conversions, and only 29 survived to British Railways. All but a handful were gone by 1949, the last three surviving until 1951. In their last years they did little work however, and were often stored out of service 12.

GWR Bulldog 3355 'Camelot' at Bath, in original condition

In original condition with a parallel boiler and early cast tapered chimney, 3355 'Camelot' (later renumbered 3343 in 1912), at Bath.

GWR Bulldog 3450 'Swansea'

3450 'Swansea' c 1910 before topfeed and superheating. Frame strengthening plates and tiebars have been fitted. It was renumbered 3388 in 1912 and its nameplates removed in 1927.

GWR Bulldog 3709

3709 after topfeed was fitted but before being renumbered 3419, so the date is 1911. As with 3450 above, frame strengthening plates and tiebars have been fitted. It never received a name.

GWR Bulldog 3386 'Paddington', probably at Reading shed

3386 'Paddington', probably at Reading shed, c 1920, and still with its original wooden cab roof. The nameplate was removed in May 1927. The tender has heavy springs, and seems to be a 3000g unit. Bulldogs worked a lot of heavy semi-fast Paddington suburban traffic until displaced by Collett's large prairie tanks.

GWR Bulldog 3376 'River Plym' at Swindon in 1926

3376 'River Plym' at Swindon after a refit in 1926, where it has received a new steel cab roof and a cast tapered chimney. It is paired with a 2500g tender.

A Westinghouse air brake pump was fitted to some locos for a while, including 3390, 3407, 3429 and 3434 Westinghouse air brake pump fitted to GWR Bulldog 3390

GWR Bulldog 3366 'Earl of Cork'

3366 'Earl of Cork', in 1920s condition. This loco had sandboxes visible above the frames. The name was removed in May 1936.

GWR Bulldog 3344 'Dartmouth'

Oval-nameplate 3344 'Dartmouth', shortly before its name was removed in November 1930 and replaced by a conventionally-shaped numberplate. On the oval-nameplate locos (3320–3360), the shape of the cab cutout was slightly different to the later engines.

GWR Bulldog 3374

In fine condition, 3374 'Walter Long' in the late 1920s, with a tapered chimney, and running with its No 2 boiler. Its frames would later be used for Dukedog 3213.

GWR Bulldog 3402 at Gloucester 1933

Looking somewhat neglected, 3402 'Jamaica' at Gloucester on 10 September 1933, paired with an early Dean 3000g tender.


Bird (3441) Class

Drawing: GWR Bird Class

Bird class in 1930s condition

This was to all intents and purposes a last batch of 15 Bulldogs built in 1909 with vacuum brakes and deeper and stronger frames, although they did revert to screw reverse. All appeared with de Glehn bogies. They were numbered 3731–3745 and renumbered 3441–3455. For most purposes they were considered part of the Bulldog class, changes and modifications were on the same lines, and no separate diagrams were issued after about the 1920s. All survived to British Railways, none were converted to Dukedogs, and the last few were withdrawn in 1951.

GWR Bulldog 3743 'Seagull' in original condition

Paired with an early-pattern 2500g tender fitted with outrigger handrails, 3743 'Seagull' in original condition, prior to being renumbered 3453 in 1912. This particular pairing with a steam-braked tender is probably an interim or temporary measure, other Birds having acquired vacuum-fitted 3000g units. It was one of the last Bulldogs in service. The bogie is a 'de Glehn' type.

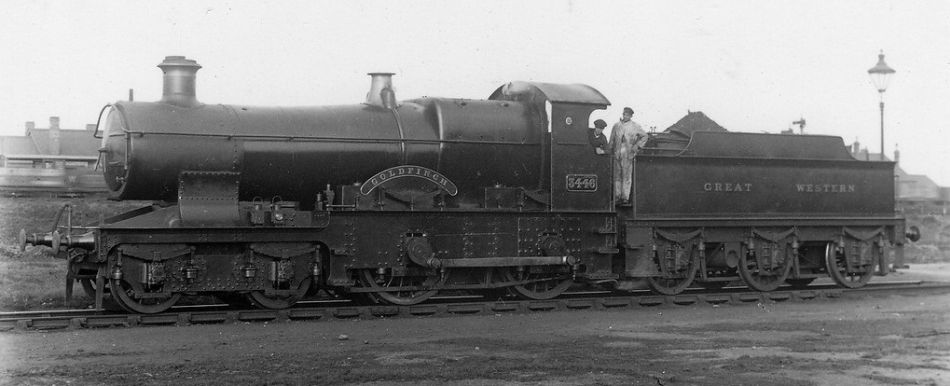

GWR Bulldog 3446 'Goldfinch' at Reading in 1926

3446 'Goldfinch' at Reading in 1926. The smokebox rear ring has acquired snaphead rivets, a steel roof has been fitted, and a strengthening patch has been applied to the frame over the rear driver. It is not clear whether the cab portholes have been plated over. Its 3000g tender carries a vacuum cylinder, but still has light springs.

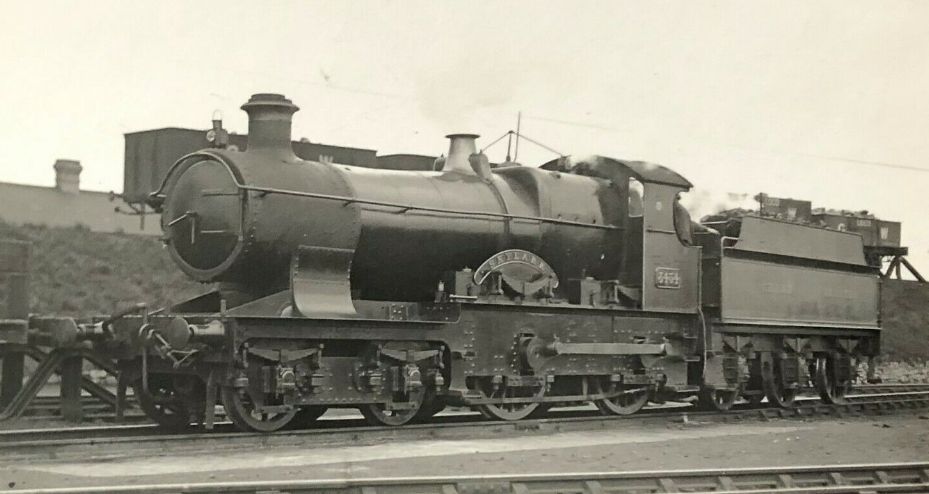

3454 'Skylark' at Reading, 1 April 1933. Its cab sidesheets have been flared out to match the bodywidth of the Churchward 3500g tender. One of the last Bulldogs to survive, it spent its last two years shedded at Reading, and was withdrawn in November 1951.


Bird series Bulldog 3451 'Pelican' after a post-WWII repaint. It was also one of the last Bulldogs in service. GWR Bulldog 3451 'Pelican'


Dukedog or Earl Class

Drawing: GWR Dukedog Class

Dukedog class in final condition

In 1929 3265 was in the workshop with rather sorry looking frames 8 and was rebuilt using a set of Churchward design straight frames from Bulldog 3365. The object of the exercise was to keep the Duke in traffic, rather than the Bulldog, which was less in demand. Keeping the identity of the Duke rather than retaining the number that went with the frames avoided the sort of numerical confusion that happened with the Duke to Bulldog conversions.

Twenty-nine more rebuilds of Bulldog frames and Duke boilers followed in 1936–9. The style of sandboxes and bogie frames was dictated by the particular donating Bulldog chassis.

The designation of these engines as a new class was perhaps something of a bookkeeping exercise 9, but Collett elected to give the 'new' class new names, and picked Earls as the series type. The story goes that some of the noble Lords had made it known that they would not object to seeing their names used on new locomotives, but that when they saw their names on these Victorian survivors they were unimpressed and the names were soon transferred to Castles. Cook gives the impression that this was Collett indulging in a little quiet personal humour 10.

The Dukedogs all survived to British Rail, and 9017 is preserved on the Bluebell railway, where from time to time she bears her old number 3217 and/or the name Earl of Berkeley. There is no current Earl of Berkeley to object!

Further notes on Dukedogs and their detail variations can be found here.

GWR Dukedog 3218 ex-works at Swindon

3218 ex-works at Swindon, with a topfeed. Behind it is one of the white-liveried DD1 diagram water tanks.

Dukedog 9010 at Swindon, 1953

9010 at Swindon in 1953, in BR(W) black livery, with a red-background numberplate. It has acquired a whistle-shield, which was unusual for the class. The bogie is of the early swing-hanger type, inherited with the constituent Bulldog 3402 chassis.

Dukedog 9014

A forlorn 9014 in its later years, with a tall casing over the topfeed. Oxley shed.


Medium boiler, large wheels

Unlike the medium wheeled engines there were variations in wheelbase among the large wheel classes, which will be covered under the individual classes. There was enough room for engines to swap class from time to time though.

Badminton Class

Drawing: GWR Badminton Class as built

Badminton Class with the original boiler

The Badmintons, like the Dukes, were built under Dean, and as built looked very much like a large wheeled Duke. The 20 engines started life with domed boilers similar to the Duke ones, but with a longer and belpaire firebox (Class W). By 1913 all the Class W boilers had been replaced by Standard 2s. They had Dean style curved frames and were numbered 3292 to 3311. The leading bogie had a 7' wheelbase, there was 7'3" between bogie and leading wheels and a 9' wheelbase on the driving wheels, so they were a foot longer than the medium wheeled engines.

In 1903 one Badminton, 3297 Earl Cawdor, was used for a quite extraordinary looking experiment 13. Influenced particularly by NER practice this engine had a huge (5'5" diameter) parallel boiler with a round top firebox and was the very antithesis of Churchward's ideas. It even had a NER style cab with double side windows. The cab must have been unpopular with the Western enginemen, because it was speedily cut down and then replaced with a skimpier western cab in 1904 14. The large boiler was given an extended trial, in use until 1906, but the results must have been negative since it was cut up the following year and no change in GWR design practice ensued.

Drawing: Earl Cawdor: GWR Badminton Class

Earl Cawdor – a unique experiment within the Badminton class

At the same time another Badminton, Waterford, was being fitted with one of the large Standard 4 boilers, and this must have been more successful since between 1905 and 1910 16 more of the class were fitted with these boilers, making them equivalent to the Cities. In 1911/13, however the Standard 4 boilers came off again and were replaced with Standard 2s: the heavier duties now being undertaken by the new 4-6-0s. The Badmintons all had swing hanger bogies, with a distinctive and different rivet pattern from the other swing hanger types. and it appears they were never fitted with de Glehn bogies. Having been renumbered from 4100–4119 in 1912, they now formed the foundation the 41xx class of medium boilered 4-4-0s.

Drawing: GWR Badminton Class

Badminton Class – final configuration with Standard 2 boiler

At this time they received the usual frame strengthening exercises, superheating and topfeed, and a little later piston valves. They were withdrawn in 1927–31.

GWR Badminton class 3292

3292 'Badminton' in original condition, with parallel boiler and narrow cab

GWR Badminton class 3305 'Samson'

3305 'Samson' with later wider cab and No 4 boiler, but before topfeed was incorporated

GWR Badminton class 4101 'Barrington'

4101 'Barrington' in its final years, with a standard No 2 boiler

Atbara Class

The Atbaras were almost straight framed Badmintons, but the length and wheelbase were changed. The engines were three inches shorter at the front end, the bogie was reduced to 6'6", the spacing between bogie and driving wheels increased to 7'6" and the driving wheelbase reduced to 8'6". Thus the engine was a foot shorter overall. They were turned out from new with parallel Standard 2 boilers. Forty were built in 1900/01 numbered 3373–3412. In their early days many had the sort of combined name/number plates described under Bulldogs. Like the Bulldogs they had steam powered reversing gear.

Sixteen were built with piston valves, but this early implementation was not very successful and they reverted to slide valves.

In 1902 3405 was rebuilt with a Standard 4 boiler, effectively the prototype of the Cities. Taper boilers came in from 1904 and all the parallel boilers had gone by 1910. In 1907–7 3400–3409 were converted to City specification by being reboilered with Standard 4 boilers.

In the renumbering they were allocated 4120–4148 (the discrepancy being because one was scrapped after accident damage and the conversions).

GWR Atbara class 3392 'White'

3392 'White' in original condition with a parallel Standard 2 boiler. A Westinghouse pump has been fitted. It became 4138 after the 1912 renumbering.

GWR Atbara class 4130 'Omdurman; in the early 1920s

4130 'Omdurman' in the early 1920s. By this time, frame-strengthening patches had been fitted, together with a tiebar between the hornguides.

GWR Atbara class 4137 'Wolseley', at Oxley shed, 25 February 1927

4137 'Wolseley' at Oxley shed, 25 February 1927. It was withdrawn the following year.

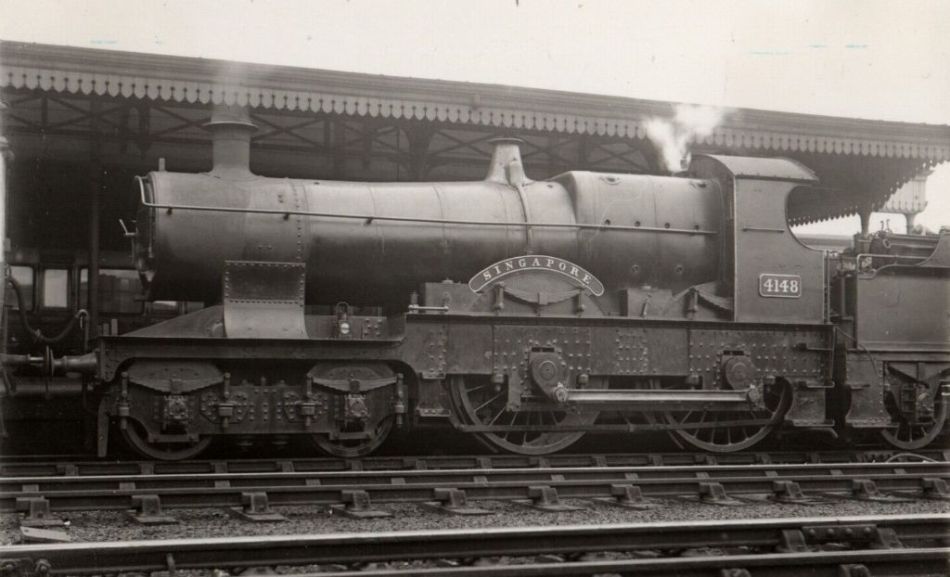

GWR Atbara 4148 Singapore

4148 'Singapore', the last of the Atbaras, towards the end of its life. It was the last to be withdrawn, in May 1931.

Flower Class

Drawing: GWR Flower Class

Flower Class. This diagram shows the final configuration with superheating and piston valves. No separate diagram was drawn for the Atbaras.

These were the deep straight framed variety of the large wheel 4-4-0s, built in 1908 with screw reverse. They were numbered 4101–4120, and renumbered 4149–4168, from which time they were effectively considered one class. They all appeared with de Glehn bogies.

The combined class received superheating from 1909–13, topfeed from 1911 and a new and successful design of piston valves from 1915.

As has been mentioned they rapidly became redundant as the 4-6-0 express engines came into service, and all were scrapped between 1927 and 1931.

GWR Flower class 4107 'Cineraria'

A coloured postcard view of 4107 'Cineraria' in its original form. It is probable that the indian-red colour given to the wheel inserts is an incorrect instruction to the postcard colourist. The bogie is a 'de Glehn' type.


GWR Flower class 4118 'Polyanthus'

4118 'Polyanthus', c 1910, before being fitted with topfeed

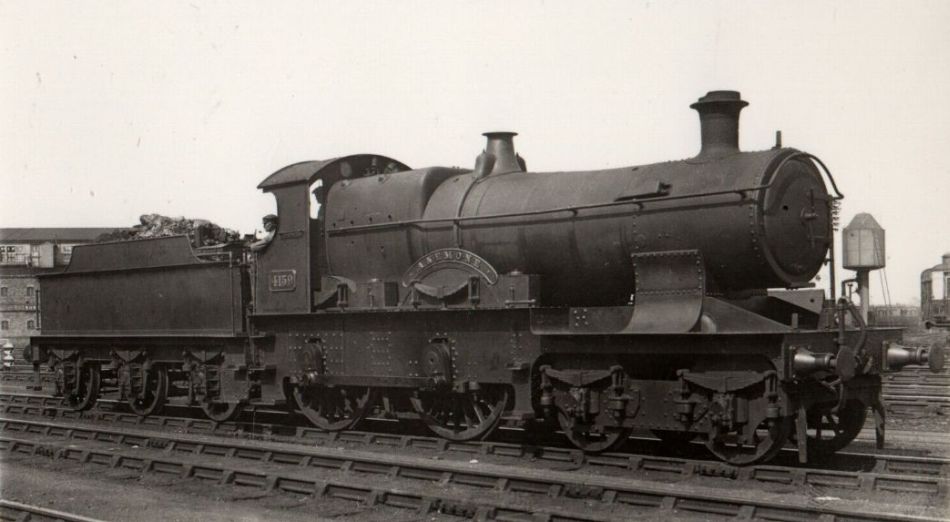

GWR Flower 4159 Anemone at Shrewsbury

4150 'Anemone' at Shrewsbury, probably early 1920s


Armstrong Class

These four engines had a complex career. The four Armstrongs, named after perhaps the four greatest men of the early GWR, Brunel, Gooch, Amstrong and Charles Saunders, started out as nominal rebuilds of earlier prototypes, but probably very little of the original engines was used 15. At this stage they were numbered 7, 8, 14 & 16 and were virtually 4-4-0 versions of the Dean Singles, with the same boilers and cylinders, smaller 7' diameter wheels and very handsome with it 16. In contrast with all other GWR 4-4-0s, the driving wheel springs were underhung. In spite of being amongst the earliest 4-4-0s their deep curved frames seem to have been the strongest of the outside-frame 4-4-0s.

The leading bogie had a 7' wheelbase, there was 7'6" between bogie and leading wheels and a 9' wheelbase on the driving wheels, so they were the longest 4-4-0s of all, 3 inches longer than the Badmintons

In 1905–10 they were rebuilt with Standard 2 boilers and wider cabs, and then superheated. Between 1915 and 1923 they were rebuilt again and given standard 6'8½" wheels, superheated Standard 2 boilers with topfeed, and were renumbered in the 4169–4172 having effectively merged with the other express Standard 2 classes. They were scrapped with the other 41xx locos in 1928–30.

GWR 'Armstrong' Class number 16 'Brunel' in original condition

Victorian elegance and grace reached a high point on the GWR in the initial condition of the 'Armstrong' locos


Large boiler, large wheels

City Class

Drawing: GWR City Class

City class as rebuilt with superheating and piston valves

Following on from the prototype mentioned under Atbaras these were the Standard 4 boilered version of the large wheeled 4-4-0. The 10 Cities proper were built in 1903 with the same wheelbase as the Atbara. Here it's compulsory to mention that in 1904 City of Truro achieved enduring fame and unending controversy when she was timed at a speed in excess of 100 mph at the hands of driver Moses Clement.

The class was expanded in 1907/8 by 9 more rebuilt Atbaras, and renumbered as 3700–3719. All the Cities appeared first with swing link bogies, but 13 of them (including City of Truro) would eventually be fitted with de Glehn bogies.

Superheating was fitted in 1910/2, topfeed from 1911 and piston valve cylinders from 1915. They were essentially rendered redundant by the 4-6-0s and were, with the exception of City of Truro of course, scrapped between 1928 and 1931.

GWR City 3405 'Mauritius' in original condition

Rebuilt in 1902 from an Atbara with a Standard 4 boiler, 3405 'Mauritius', with the nameplate continuous with the splasher perimeter

GWR City 3715 'City of Hereford'

3715 'City of Hereford', in early 1920s condition, with the front smokebox ring still flush-riveted. The bogie is a 'de Glehn' type.

GWR City 3705 'Mauritius, in final condition

3705 'Mauritius' again, in its later years, running with a 3500g tender. The bogie is a 'de Glehn' type.

GWR 'City of Truro' in 1957

In 1957, City of Truro was resurrected from the museum in York and given a complete overhaul for working special services as well as normal ones on the Didcot, Newbury & Southampton Railway. It was painted in the livery it had in 1904 when setting its steam speed record, but Swindon seems not to have had any indian red paint for the outsides of the frames, and an incorrect bright bauxite colour was used instead. It was withdrawn in 1961.


Rebuilt Badminton Class

As noted above seventeen Badmintons temporarily joined the large boiler class between 1905 and 1913. It's surprising that these were not renumbered into the 37xx series – perhaps their reversion to Standard 2 boilers was long planned. Some were superheated whilst carrying the large boilers, but none received piston valves in that configuration.

County Class

The Counties were the last new 4-4-0s constructed for the GWR. They were pure Churchward standard engines with inside frames and outside cylinders, so are outside the scope of this article.



1  Southern – Schools Class from 1930, LNER Hunt/Shire class from 1927.

2  Swindon Steam 1921–1951, K J Cook, Ian Allan Ltd, 1974 0 7110 0511 7. p63 and on.

3  The Locomotives of the Great Western Railway Part Seven, Dean's Larger Tender Engines, N J Allcock, F K Davies, H M Le Fleming, P J T Reed & F J Tabor, The Railway Correspondence and Travel Society.

This is the principle source for this paper.

4  The Locomotives of the Great Western Railway Part One: Introductory Survey, N J Allcock, F K Davies, H M Le Fleming, P J T Reed & F J Tabor, The Railway Correspondence and Travel Society.

5  A Pictorial Record of Great Western Engines, Vol. 1 Gooch, Armstrong & Dean Locomotives, J H Russell, OPC, 1999. ISBN 0 86093-398-9. pp156-177 provides many photos of this development work.

6  An Outline of Great Western Locomotive Practice, H Holcroft, Ian Allen Ltd (p60/61 1971 edition)

7  Great Western Locomotive design – A Critical Appreciation, John C Gibson, David & Charles, 1984 0-7153-8606-9. p60.

I'm a little cautious in using and recommending this book as a source. While Gibson was there and had relevant training, his book is strongly opinionated and a number of his conclusions are at odds with other sources.

8  Cook p118

9  Cook p115 on

10  Cook p119

11  A Pictorial Record of Great Western Engines, Vol. 2 Churchward, Collett & Hawksworth, J H Russell, OPC, 1999. ISBN 0 86093-399-7. Pp 1–9 cover Bulldog development.

12  RCTS 7 pG22

13  Russell Vol1, p173

14  Gibson, p124.

15  RCTS 7 pG27

16  Russell Vol2: Preface.

17  GWR locomotive numbering and classification

18  Non-Bird Bulldogs known to have been fitted with screw reverse include: 3306, 3308, 3316, 3317, 3323, 3326, 3327, 3328, 3330, 3331, 3332, 3338, 3340, 3342, 3346, 3353, 3357, 3358, 3361, 3363, 3364, 3365, 3367, 3369, 3372, 3374, 3376, 3377, 3378, 3379, 3380, 3382, 3383, 3385, 3396, 3398, 3399, 3400, 3401, 3406, 3407, 3408, 3410, 3414, 3419, 3420, 3428, 3437.

19  An extensive set of pictures of City of Truro.


Drawings are approximately redrawn from Russell but are strictly representative and may contain errors.
